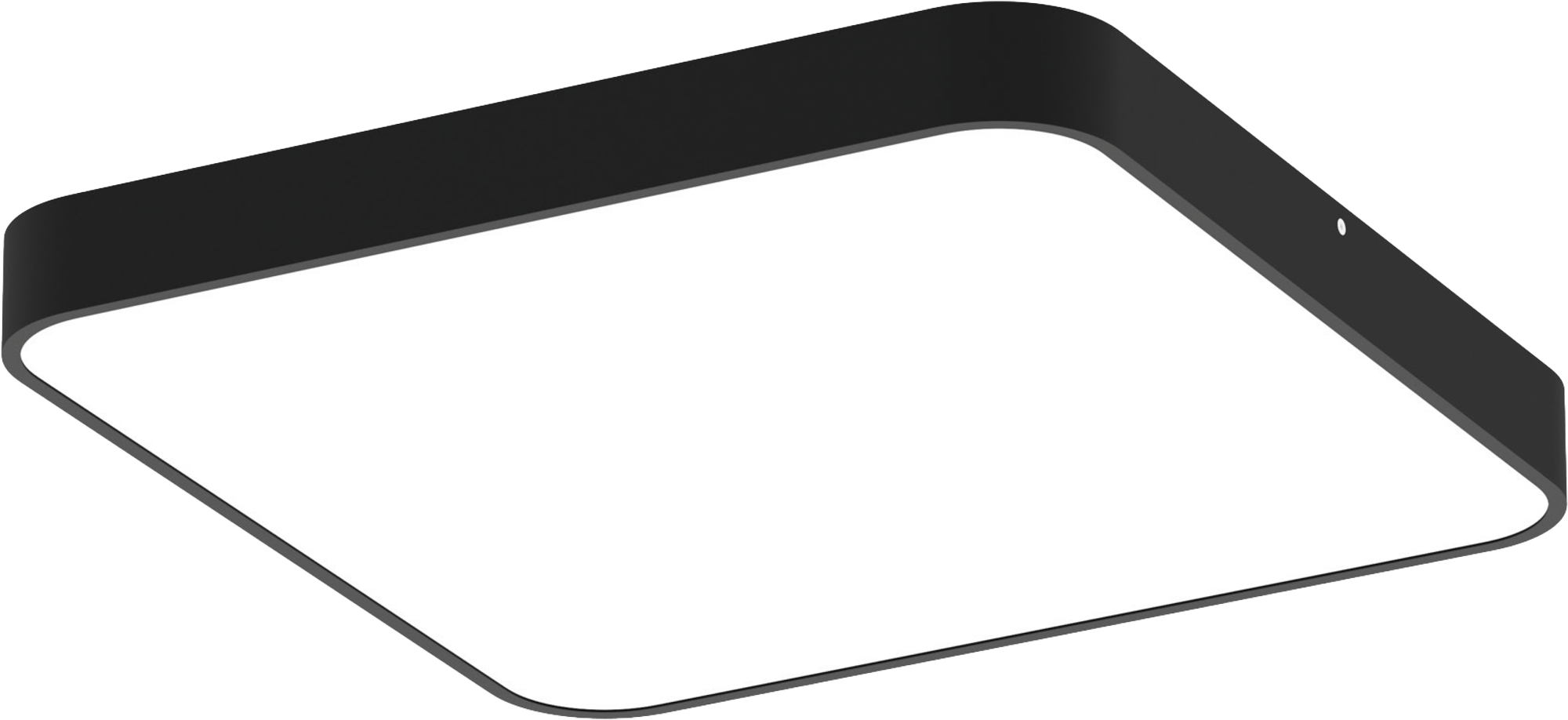

Anb./Pendell. APO 600.41.4.OP LED 41W/4810lm/4000K/CRI>80 600x600x65 mm/schwarz

Montageanleitung_LED_Anbau__und_Pendelleuchte__APO__de_en__2025_11__Angabe_EEK_fehlt_noch_.pdf

APO

Width: 600 mm, Length: 600 mm, Colour temperature: 4000 K, Max. system power: 41 W, Rated luminous flux according to IEC 62722-2- 1: 4810 lm

Product nr.: 3332101

See all versions

Width

Length

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> Quadratische Anbauleuchte mit weichen Linien und
modernem Design
> Charakteristische Form mit abgerundeten Ecken: elegante Kombination aus Quadrat und Oval – ideal für zeitgemäße Raumgestaltung
> Wählbare Abdeckungen: opal oder mikroprismatisch – für angenehmes Licht und optimierte Lichtlenkung
> Gehäuse in verschiedenen RAL-Farben erhältlich: anpassbar an unterschiedliche Raumkonzepte
> Anbau- oder Pendelmontage möglich: flexibel einsetzbar – ideal für verschiedene Raumhöhen
und Gestaltungskonzepte

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-20

Lifespan 50000-L80

LED

Pendant

Risk group RG-1

Color Consistency SDCM-3

Sconce

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Housing material:

Aluminium

Surface protection housing:

Powder coating

Housing colour:

Black

Material cover:

Plastic, opal

Voltage type:

Type of control gear:

LED operating device current-controlled

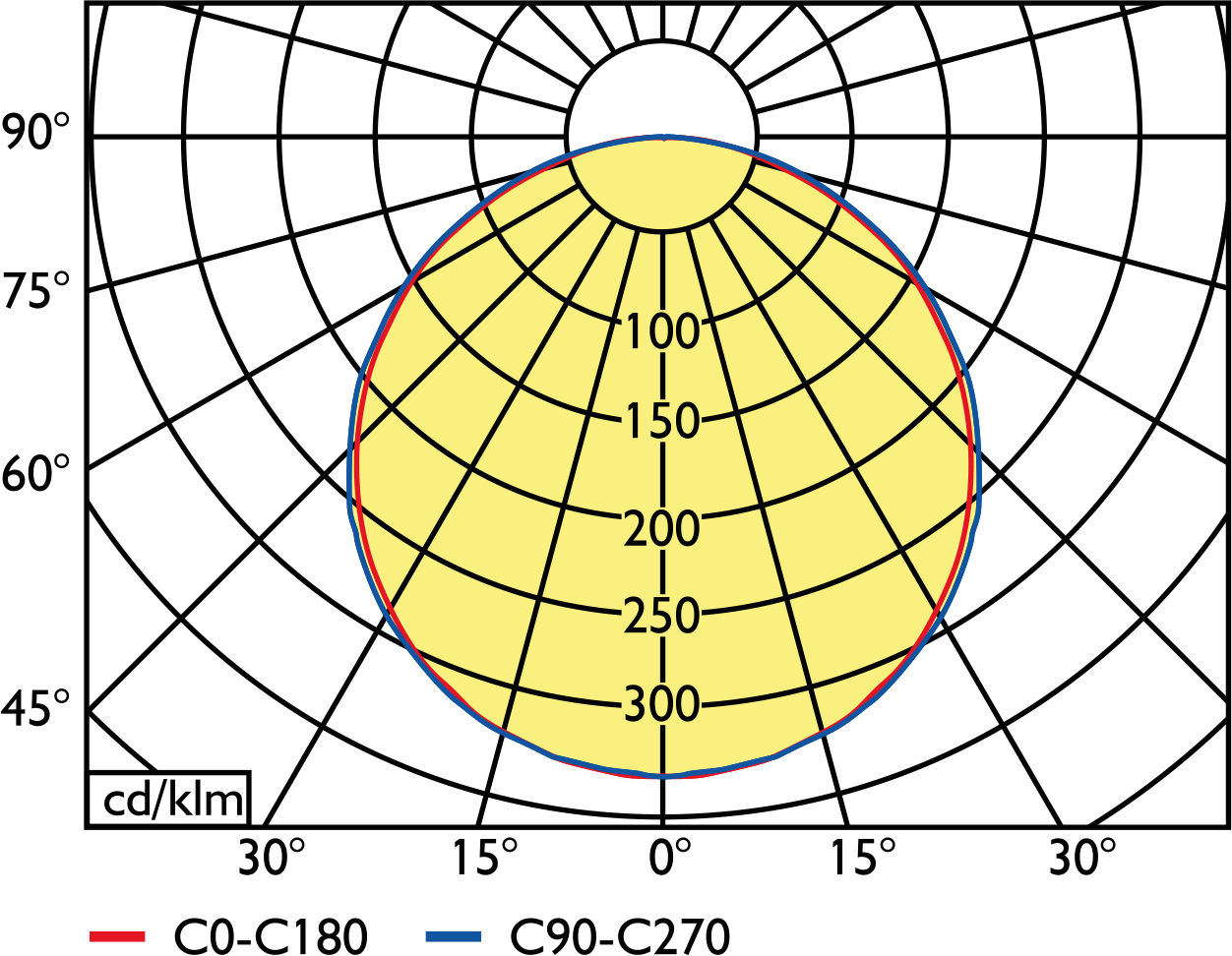

Light distributor:

Diffuser lens/optic/panel

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP20

Impact strength:

IK04

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

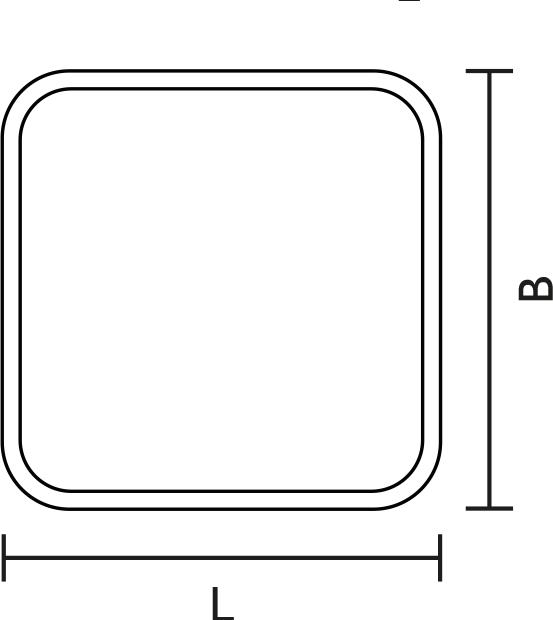

Height/depth:

65 mm

Width:

600 mm

Length:

600 mm

Max. system power:

41 W

Rated luminous flux according to IEC 62722-2- 1:

4810 lm

Downloads

Montageanleitung_LED_Anbau__und_Pendelleuchte__APO__de_en__2025_11__Angabe_EEK_fehlt_noch_.pdf

All versions

Type	Colour temperature	Width	Length	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type Anb./Pendell. APO 600.32.4.OP LED 32W/3770lm/4000K/CRI>80 600x600x65 mm/schwarz	Colour temperature 4000 K	Width 600 mm	Length 600 mm	Max. system power 32 W	Rated luminous flux according to IEC 62722-2- 1 3770 lm	Product nr. 3332100
Anb./Pendell. APO 600.32.4.OP LED 32W/3770lm/4000K/CRI>80 600x600x65 mm/schwarz Width: 600 mm, Length: 600 mm, Colour temperature: 4000 K, Max. system power: 32 W, Rated luminous flux according to IEC 62722-2- 1: 3770 lm Product-Nr.: 3332100 Width: 600 mm Length: 600 mm Colour temperature: 4000 K Max. system power: 32 W Rated luminous flux according to IEC 62722-2- 1: 3770 lm Price only for registered users Log in To product

Type Anb./Pendell. APO 1100.32.4.OP LED 32W/3630lm/4000K/CRI>80 1100x300x65 mm/schwarz	Colour temperature 4000 K	Width 300 mm	Length 1100 mm	Max. system power 32 W	Rated luminous flux according to IEC 62722-2- 1 3630 lm	Product nr. 3332110
Anb./Pendell. APO 1100.32.4.OP LED 32W/3630lm/4000K/CRI>80 1100x300x65 mm/schwarz Width: 300 mm, Length: 1100 mm, Colour temperature: 4000 K, Max. system power: 32 W, Rated luminous flux according to IEC 62722-2- 1: 3630 lm Product-Nr.: 3332110 Width: 300 mm Length: 1100 mm Colour temperature: 4000 K Max. system power: 32 W Rated luminous flux according to IEC 62722-2- 1: 3630 lm Price only for registered users Log in To product

Type Anb./Pendell. APO 1100.41.4.OP LED 41W/4630lm/4000K/CRI>80 1100x300x65 mm/schwarz	Colour temperature 4000 K	Width 300 mm	Length 1100 mm	Max. system power 41 W	Rated luminous flux according to IEC 62722-2- 1 4630 lm	Product nr. 3332111
Anb./Pendell. APO 1100.41.4.OP LED 41W/4630lm/4000K/CRI>80 1100x300x65 mm/schwarz Width: 300 mm, Length: 1100 mm, Colour temperature: 4000 K, Max. system power: 41 W, Rated luminous flux according to IEC 62722-2- 1: 4630 lm Product-Nr.: 3332111 Width: 300 mm Length: 1100 mm Colour temperature: 4000 K Max. system power: 41 W Rated luminous flux according to IEC 62722-2- 1: 4630 lm Price only for registered users Log in To product

Type Anb./Pendell. APO 600.41.4.OP LED 41W/4810lm/4000K/CRI>80 600x600x65 mm/schwarz	Colour temperature 4000 K	Width 600 mm	Length 600 mm	Max. system power 41 W	Rated luminous flux according to IEC 62722-2- 1 4810 lm	Product nr. 3332101
Anb./Pendell. APO 600.41.4.OP LED 41W/4810lm/4000K/CRI>80 600x600x65 mm/schwarz Width: 600 mm, Length: 600 mm, Colour temperature: 4000 K, Max. system power: 41 W, Rated luminous flux according to IEC 62722-2- 1: 4810 lm Product-Nr.: 3332101 Width: 600 mm Length: 600 mm Colour temperature: 4000 K Max. system power: 41 W Rated luminous flux according to IEC 62722-2- 1: 4810 lm Price only for registered users Log in To product
