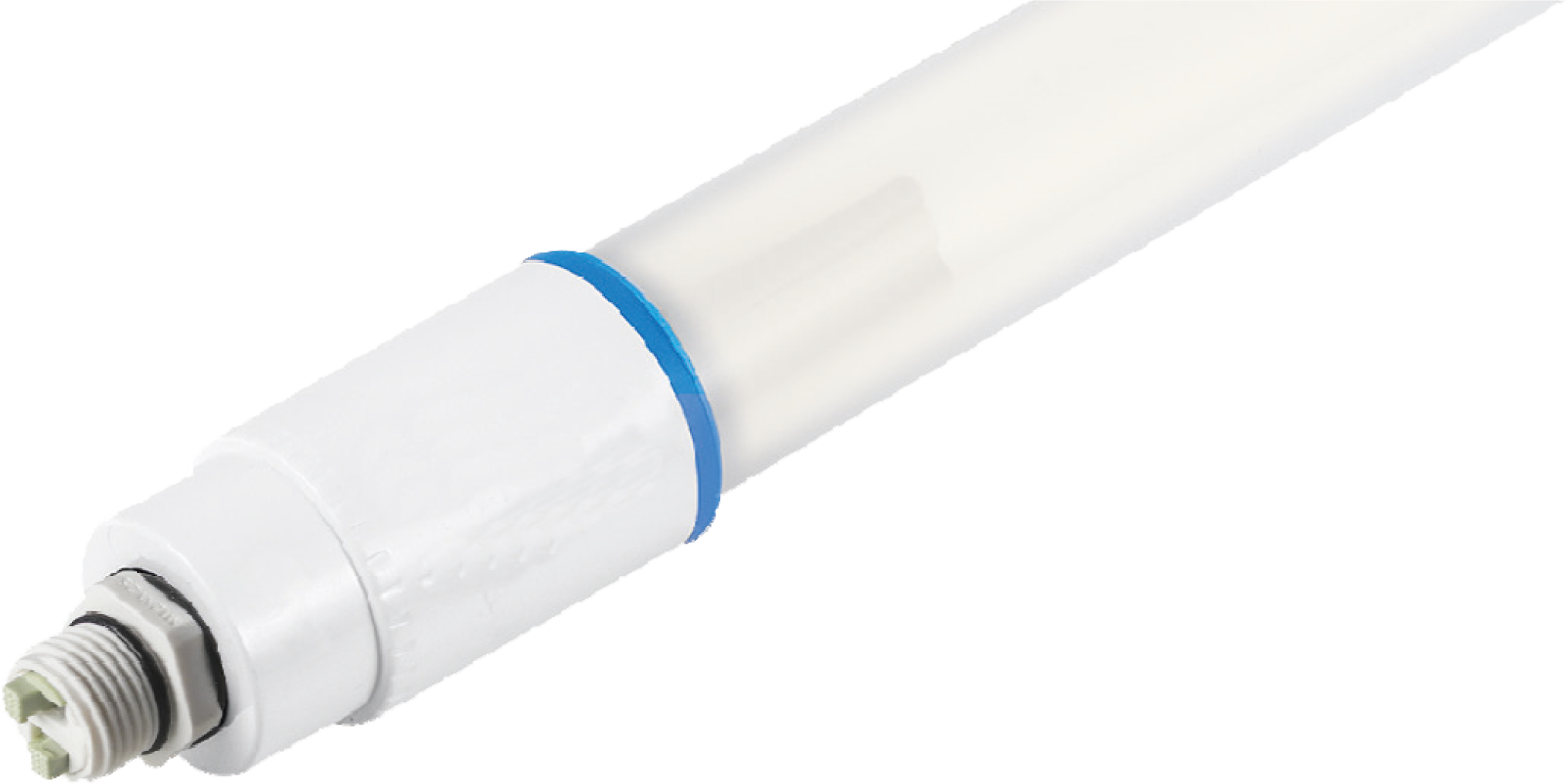

Feuchtraum Profil- und Rohrleuchten - Serie 32
FR-Rohrleuchte LED 32150.4 22W/3080lm/4000K/1473 mm/RA>80 inkl.Anschlussleitg.1m/AC 230V
Product nr.: 623801
See all versionsPrice for registered users only
As a registered user, you have access to all prices for our items and can order directly.
Log in
Product description
> Kompakte, montagefreundliche Leuchte für vielfältige
Einsatzmöglichkeiten
> Abstrahlwinkel 200° - homogene Ausleuchtung durch hohen Indirektanteil
> Integrierte Zuleitung 1.000 mm
> Mit Durchgangsverdrahtung 2 x 1,0 mm² und beidseitiger Anschlussklemme erhältlich

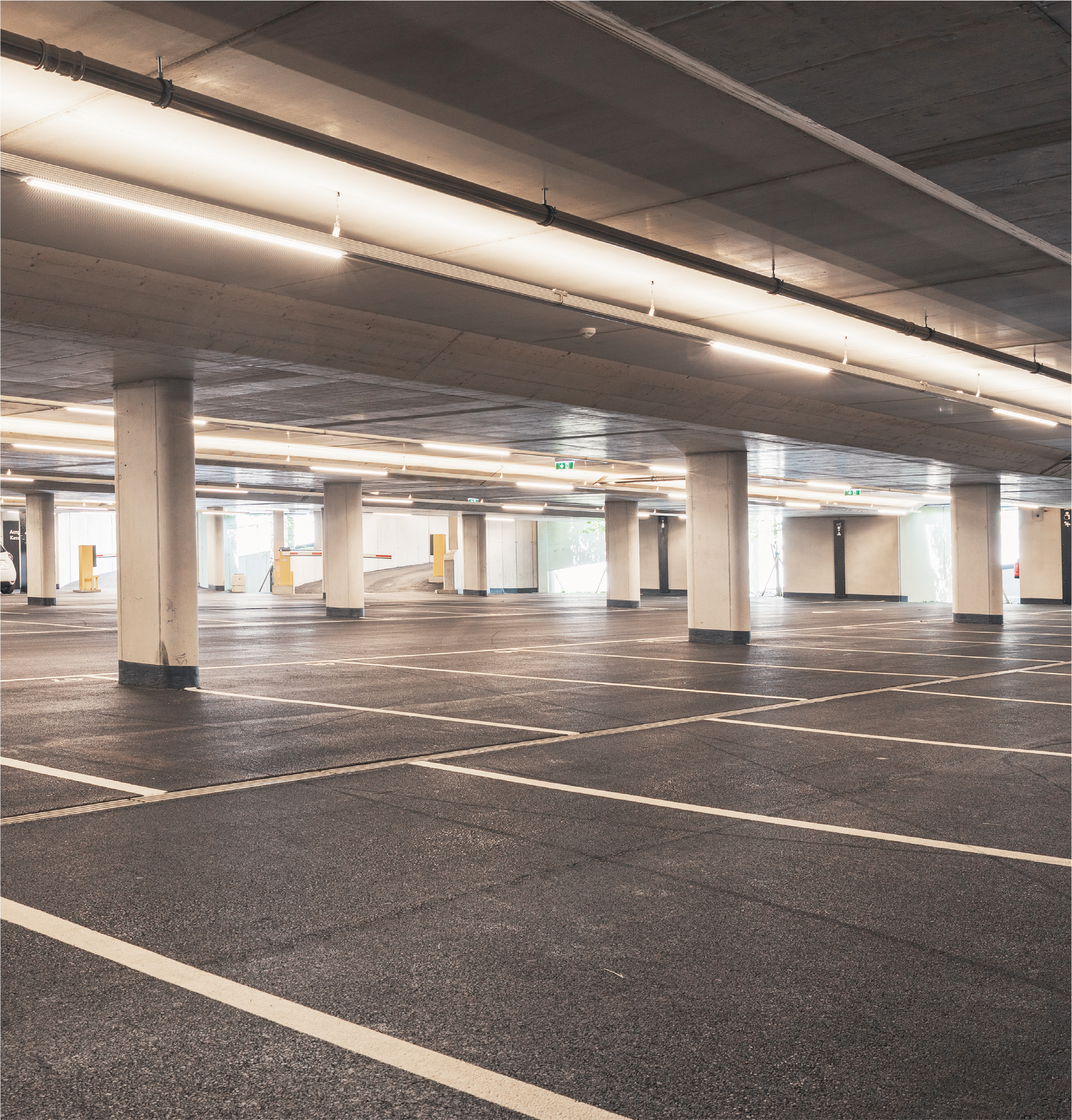

> Als Baustellen-, Maschinen- oder Unterbauleuchte geeignet
> Platzsparend und vielseitig einsetzbar
Special features
Surface-mounted luminaire
Connected loads 100-240 V, 50-60 Hz
CE
IP-66
Lifespan 45000-L80
LED
Pendant
Risk group RG-0
Impact Protection IK10
Protection class II
Color Consistency SDCM-5
Ambient temperature -20°+50°
Technical specifications
General
All versions
| Type | Type of wiring | Colour temperature | Length | Max. system power | Rated luminous flux according to IEC 62722-2- 1 | Product nr. | ||
|---|---|---|---|---|---|---|---|---|
| Type FR-Rohrleuchte LED 32120.4 18W/2520lm/4000K/1173 mm/RA>80 inkl.Anschlussleitg.1m/AC 230V | Type of wiring Ending | Colour temperature 4000 K | Length 1173 mm | Max. system power 18 W | Rated luminous flux according to IEC 62722-2- 1 2520 lm | Product nr. 623800 | keyboard_arrow_down | |
FR-Rohrleuchte LED 32120.4 18W/2520lm/4000K/1173 mm/RA>80 inkl.Anschlussleitg.1m/AC 230VLength: 1173 mm, Colour temperature: 4000 K, Max. system power: 18 W, Type of wiring: Ending, Rated luminous flux according to IEC 62722-2- 1: 2520 lm Product-Nr.: 623800 Length: 1173 mm Colour temperature: 4000 K Max. system power: 18 W Type of wiring: Ending Rated luminous flux according to IEC 62722-2- 1: 2520 lm Price only for registered users Log in |
||||||||
| Type FR-Rohrleuchte LED 32150.4 DV 22W/3080lm/4000K/1473 mm/RA>80 inkl. DV / AC 230V | Type of wiring Loop-through wiring included | Colour temperature 4000 K | Length 1473 mm | Max. system power 22 W | Rated luminous flux according to IEC 62722-2- 1 3080 lm | Product nr. 623807 | keyboard_arrow_down | |
FR-Rohrleuchte LED 32150.4 DV 22W/3080lm/4000K/1473 mm/RA>80 inkl. DV / AC 230VLength: 1473 mm, Colour temperature: 4000 K, Max. system power: 22 W, Type of wiring: Loop-through wiring included, Rated luminous flux according to IEC 62722-2- 1: 3080 lm Product-Nr.: 623807 Length: 1473 mm Colour temperature: 4000 K Max. system power: 22 W Type of wiring: Loop-through wiring included Rated luminous flux according to IEC 62722-2- 1: 3080 lm Price only for registered users Log in |
||||||||
| Type FR-Rohrleuchte LED 32060.4 10W/1400lm/4000K/588 mm/RA>80 inkl.Anschlussleitg.1m/AC 230V | Type of wiring Ending | Colour temperature 4000 K | Length 588 mm | Max. system power 10 W | Rated luminous flux according to IEC 62722-2- 1 1400 lm | Product nr. 623802 | keyboard_arrow_down | |
FR-Rohrleuchte LED 32060.4 10W/1400lm/4000K/588 mm/RA>80 inkl.Anschlussleitg.1m/AC 230VLength: 588 mm, Colour temperature: 4000 K, Max. system power: 10 W, Type of wiring: Ending, Rated luminous flux according to IEC 62722-2- 1: 1400 lm Product-Nr.: 623802 Length: 588 mm Colour temperature: 4000 K Max. system power: 10 W Type of wiring: Ending Rated luminous flux according to IEC 62722-2- 1: 1400 lm Price only for registered users Log in |
||||||||
| Type FR-Rohrleuchte LED 32150.4 22W/3080lm/4000K/1473 mm/RA>80 inkl.Anschlussleitg.1m/AC 230V | Type of wiring Ending | Colour temperature 4000 K | Length 1473 mm | Max. system power 22 W | Rated luminous flux according to IEC 62722-2- 1 3080 lm | Product nr. 623801 | keyboard_arrow_down | |
FR-Rohrleuchte LED 32150.4 22W/3080lm/4000K/1473 mm/RA>80 inkl.Anschlussleitg.1m/AC 230VLength: 1473 mm, Colour temperature: 4000 K, Max. system power: 22 W, Type of wiring: Ending, Rated luminous flux according to IEC 62722-2- 1: 3080 lm Product-Nr.: 623801 Length: 1473 mm Colour temperature: 4000 K Max. system power: 22 W Type of wiring: Ending Rated luminous flux according to IEC 62722-2- 1: 3080 lm Price only for registered users Log in |
||||||||
