ETIM-class:

Electrical unit for linear/light-line system

Lamp type:

LED exchangeable

Lamp holder:

None

Housing material:

Aluminium

Housing colour:

Aluminium

Voltage type:

AC/DC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Reflector:

None

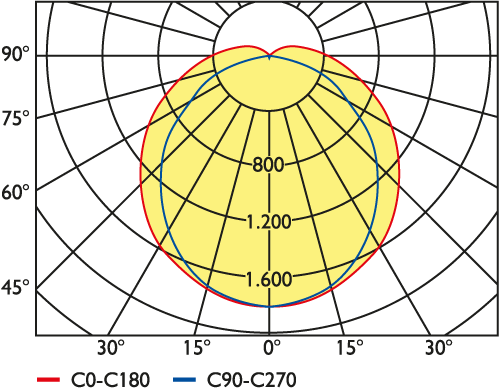

Light distribution:

Symmetric

Light outlet:

Direct

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Energy efficiency class of the light source according to EU regulation 2019/2015:

C

Degree of protection (IP):

IP40

Protection class according to IEC 61140:

I

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Emergency power supply system:

Central (central battery)

Emergency function monitoring system:

None

Colour rendering index CRI:

80-89

Beam angle adjustable:

No

Colour of light adjustable:

No

Luminous flux adjustable:

Positions

Type of wiring:

Ending

Connection type:

Blade terminal

Width:

56 mm

Height/depth:

45 mm

Rated lifetime L70/B50 at 25 °C:

50000 h

Length:

1426 mm

Colour temperature:

4000 K

Max. system power:

62 W

Rated luminous flux according to IEC 62722-2- 1:

9390 lm

Beam angle:

130 °
