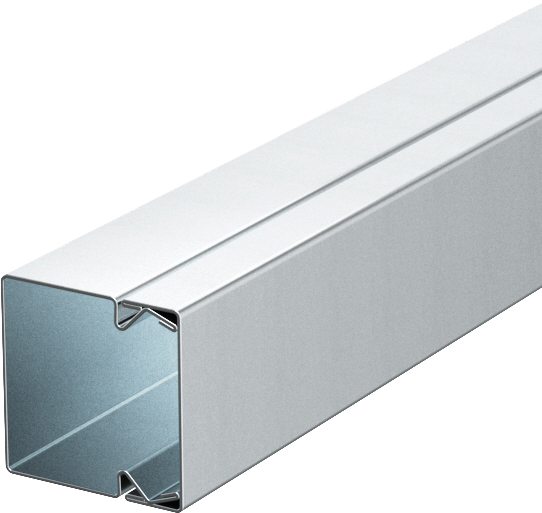

Installationskanal CKS40x40mm Reinweiß RAL 9010,VE: 12m Stahlblech, Sendzimirverzinkt

Datenblatt_CKS__de__2022_08.pdf

Installationskanäle - CKS, Stahlblech

Width: 40 mm, Height: 40 mm, Surface protection: Continuously galvanised and coated

Product nr.: 63005-1

See all versions

Width

Height

Surface protection

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Material: Stahblech, sendzimirverzinkt

Besondere Merkmale

Montagefreundliches Zubehör, z.B. Trennstege (ab einer Höhe von 60 mm) und Leitungshalter (ab 60 x 60 mm), ergänzen bzw. erweitern den Anwendungsbereich
Farbe: pulverbeschichtet ähnlich reinweiß RAL 9010, andere Farben auf Anfrage
Lieferumfang: Unterteil mit Bodenlochungen inkl. Deckel, Länge 2 m

Special features

lead-free

CE Exempt

RoHS compliant

Technical specifications

General

ETIM-class:

Mini/maxi trunking

Material:

Steel

Material quality:

Other

Surface protection:

Continuously galvanised and coated

Colour:

White

Type of fastening:

Bottom perforation

Cover model:

Loose

RAL color standard:

9010

Length:

2000 mm

Width:

40 mm

Height:

40 mm

Usable cross section:

1600 mm²

Downloads

Datenblatt_CKS__de__2022_08.pdf

All versions

Type	Surface protection	Width	Height	Product nr.
Type Installationskanal CKS30x30mm Reinweiß RAL 9010,VE: 16m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 30 mm	Height 30 mm	Product nr. 62005-1
Installationskanal CKS30x30mm Reinweiß RAL 9010,VE: 16m Stahlblech, Sendzimirverzinkt Width: 30 mm, Height: 30 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 62005-1 Width: 30 mm Height: 30 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS60x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 60 mm	Height 60 mm	Product nr. 65005-1
Installationskanal CKS60x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt Width: 60 mm, Height: 60 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 65005-1 Width: 60 mm Height: 60 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS30x20mm Verzinkt,VE: 24m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 30 mm	Height 24 mm	Product nr. 61000-1
Installationskanal CKS30x20mm Verzinkt,VE: 24m Stahlblech, Sendzimirverzinkt Width: 30 mm, Height: 24 mm, Surface protection: Continuously galvanised Product-Nr.: 61000-1 Width: 30 mm Height: 24 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS150x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 150 mm	Height 60 mm	Product nr. 67000-1
Installationskanal CKS150x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt Width: 150 mm, Height: 60 mm, Surface protection: Continuously galvanised Product-Nr.: 67000-1 Width: 150 mm Height: 60 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS20x20mm Reinweiß RAL 9010,VE: 30m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 20 mm	Height 24 mm	Product nr. 60005-1
Installationskanal CKS20x20mm Reinweiß RAL 9010,VE: 30m Stahlblech, Sendzimirverzinkt Width: 20 mm, Height: 24 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 60005-1 Width: 20 mm Height: 24 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS200x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 200 mm	Height 60 mm	Product nr. 68005-1
Installationskanal CKS200x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt Width: 200 mm, Height: 60 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 68005-1 Width: 200 mm Height: 60 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS200x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 200 mm	Height 60 mm	Product nr. 68000-1
Installationskanal CKS200x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt Width: 200 mm, Height: 60 mm, Surface protection: Continuously galvanised Product-Nr.: 68000-1 Width: 200 mm Height: 60 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS100x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 100 mm	Height 60 mm	Product nr. 66005-1
Installationskanal CKS100x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt Width: 100 mm, Height: 60 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 66005-1 Width: 100 mm Height: 60 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS40x40mm Reinweiß RAL 9010,VE: 12m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 40 mm	Height 40 mm	Product nr. 63005-1
Installationskanal CKS40x40mm Reinweiß RAL 9010,VE: 12m Stahlblech, Sendzimirverzinkt Width: 40 mm, Height: 40 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 63005-1 Width: 40 mm Height: 40 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS40x40mm Verzinkt,VE: 16m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 40 mm	Height 40 mm	Product nr. 63000-1
Installationskanal CKS40x40mm Verzinkt,VE: 16m Stahlblech, Sendzimirverzinkt Width: 40 mm, Height: 40 mm, Surface protection: Continuously galvanised Product-Nr.: 63000-1 Width: 40 mm Height: 40 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS60x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 60 mm	Height 60 mm	Product nr. 65000-1
Installationskanal CKS60x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt Width: 60 mm, Height: 60 mm, Surface protection: Continuously galvanised Product-Nr.: 65000-1 Width: 60 mm Height: 60 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS30x30mm Verzinkt,VE: 16m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 30 mm	Height 30 mm	Product nr. 62000-1
Installationskanal CKS30x30mm Verzinkt,VE: 16m Stahlblech, Sendzimirverzinkt Width: 30 mm, Height: 30 mm, Surface protection: Continuously galvanised Product-Nr.: 62000-1 Width: 30 mm Height: 30 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS100x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 100 mm	Height 60 mm	Product nr. 66000-1
Installationskanal CKS100x60mm Verzinkt,VE: 8m Stahlblech, Sendzimirverzinkt Width: 100 mm, Height: 60 mm, Surface protection: Continuously galvanised Product-Nr.: 66000-1 Width: 100 mm Height: 60 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS60x40mm Verzinkt,VE: 12m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 60 mm	Height 40 mm	Product nr. 64000-1
Installationskanal CKS60x40mm Verzinkt,VE: 12m Stahlblech, Sendzimirverzinkt Width: 60 mm, Height: 40 mm, Surface protection: Continuously galvanised Product-Nr.: 64000-1 Width: 60 mm Height: 40 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS60x40mm Reinweiß RAL 9010,VE: 12m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 60 mm	Height 40 mm	Product nr. 64005-1
Installationskanal CKS60x40mm Reinweiß RAL 9010,VE: 12m Stahlblech, Sendzimirverzinkt Width: 60 mm, Height: 40 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 64005-1 Width: 60 mm Height: 40 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS30x20mm Reinweiß RAL 9010,VE: 22m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 30 mm	Height 24 mm	Product nr. 61005-1
Installationskanal CKS30x20mm Reinweiß RAL 9010,VE: 22m Stahlblech, Sendzimirverzinkt Width: 30 mm, Height: 24 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 61005-1 Width: 30 mm Height: 24 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product

Type Installationskanal CKS20x20mm Verzinkt,VE: 32m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised	Width 20 mm	Height 24 mm	Product nr. 60000-1
Installationskanal CKS20x20mm Verzinkt,VE: 32m Stahlblech, Sendzimirverzinkt Width: 20 mm, Height: 24 mm, Surface protection: Continuously galvanised Product-Nr.: 60000-1 Width: 20 mm Height: 24 mm Surface protection: Continuously galvanised Price only for registered users Log in To product

Type Installationskanal CKS150x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt	Surface protection Continuously galvanised and coated	Width 150 mm	Height 60 mm	Product nr. 67005-1
Installationskanal CKS150x60mm Reinweiß RAL 9010,VE: 8m Stahlblech, Sendzimirverzinkt Width: 150 mm, Height: 60 mm, Surface protection: Continuously galvanised and coated Product-Nr.: 67005-1 Width: 150 mm Height: 60 mm Surface protection: Continuously galvanised and coated Price only for registered users Log in To product
