LED-Anbaul. MAS 37.4 asym. 37W/4000K/4500lm/L=1245 mm RAL9016

Datenblatt_LED_Anbauleuchte__asymmetrisch___MAS__de_en_2025_08.pdf Montageanleitung_LED_Anbauleuchte__asymmetrisch___MAS__de_en__2024_05.pdf

MAS

Length: 1245 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 4500 lm

Product nr.: 3382009-6

See all versions

Length

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> Leuchte mit präziser Lichtlenkung
> Optimale Lichtverteilung für wandnahe Beleuchtung und gezielte Flächenausleuchtung
> Ideal zur Beleuchtung von Tafeln, Whiteboards, Verkaufsregalen oder Bildern
> Anbau - und Pendelmontage

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-20

LED

Pendant

Risk group RG-0

Color Consistency SDCM-3

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Housing material:

Steel

Surface protection housing:

Powder coating

Housing colour:

White

Material cover:

Plastic, opal

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Reflector

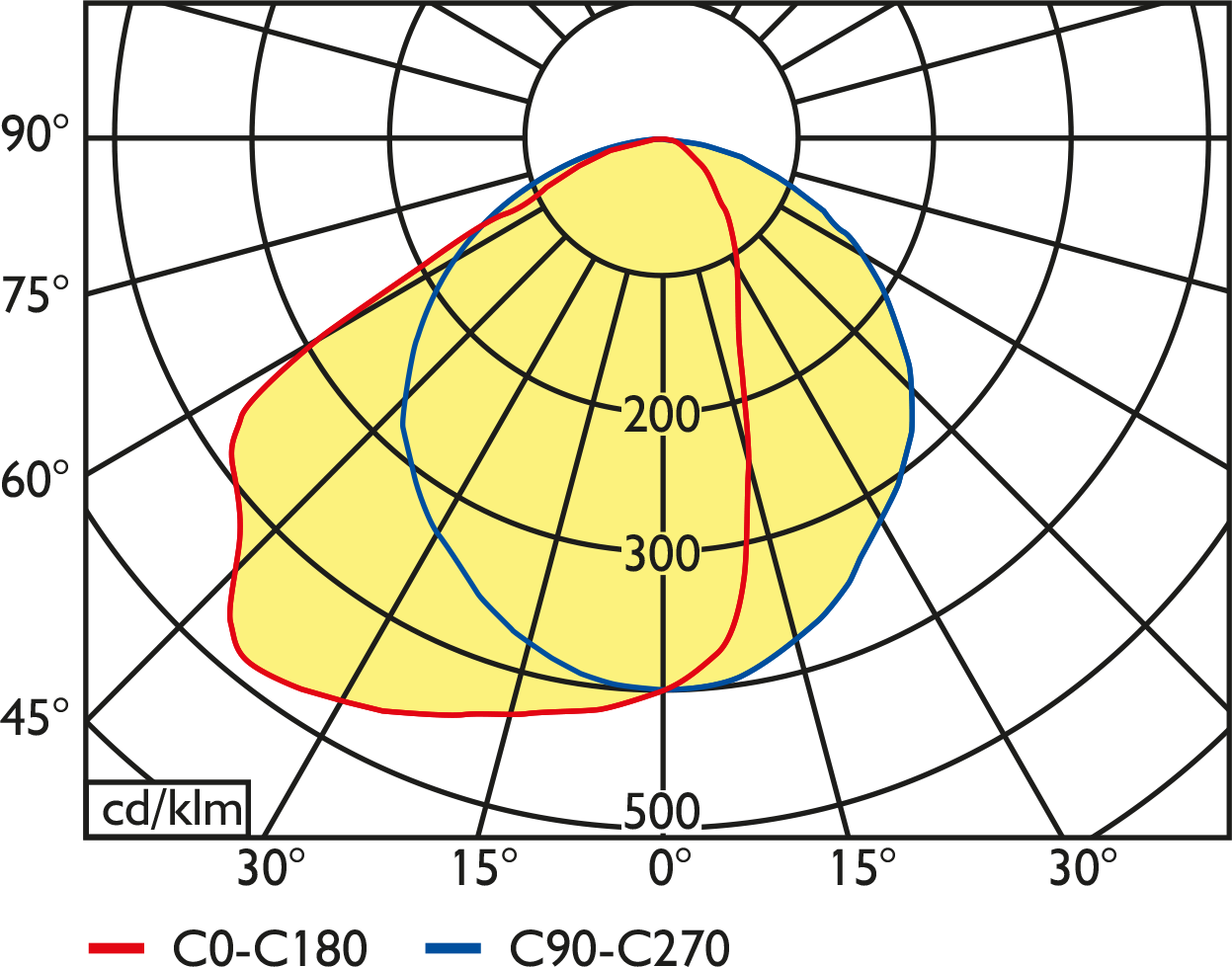

Light distribution:

Asymmetric

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP20

Impact strength:

IK03

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Loop-through wiring included

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Height/depth:

52 mm

Max. system power:

37 W

Rated luminous flux according to IEC 62722-2- 1:

4500 lm

Width:

245 mm

Length:

1245 mm

Downloads

Datenblatt_LED_Anbauleuchte__asymmetrisch___MAS__de_en_2025_08.pdf Montageanleitung_LED_Anbauleuchte__asymmetrisch___MAS__de_en__2024_05.pdf

All versions

Type	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Length	Product nr.
Type LED-Anbaul. MAS 37.4 asym. 37W/4000K/4500lm/L=1245 mm RAL9016	Colour temperature 4000 K	Max. system power 37 W	Rated luminous flux according to IEC 62722-2- 1 4500 lm	Length 1245 mm	Product nr. 3382009-6
LED-Anbaul. MAS 37.4 asym. 37W/4000K/4500lm/L=1245 mm RAL9016 Length: 1245 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 4500 lm Product-Nr.: 3382009-6 Length: 1245 mm Colour temperature: 4000 K Max. system power: 37 W Rated luminous flux according to IEC 62722-2- 1: 4500 lm Price only for registered users Log in To product

Type LED-Anbaul. MAS 51.4 asym. 51W/4000K/6200lm/L=1545 mm RAL 9016	Colour temperature 4000 K	Max. system power 51 W	Rated luminous flux according to IEC 62722-2- 1 6200 lm	Length 1545 mm	Product nr. 3382004-6
LED-Anbaul. MAS 51.4 asym. 51W/4000K/6200lm/L=1545 mm RAL 9016 Length: 1545 mm, Colour temperature: 4000 K, Max. system power: 51 W, Rated luminous flux according to IEC 62722-2- 1: 6200 lm Product-Nr.: 3382004-6 Length: 1545 mm Colour temperature: 4000 K Max. system power: 51 W Rated luminous flux according to IEC 62722-2- 1: 6200 lm Price only for registered users Log in To product
