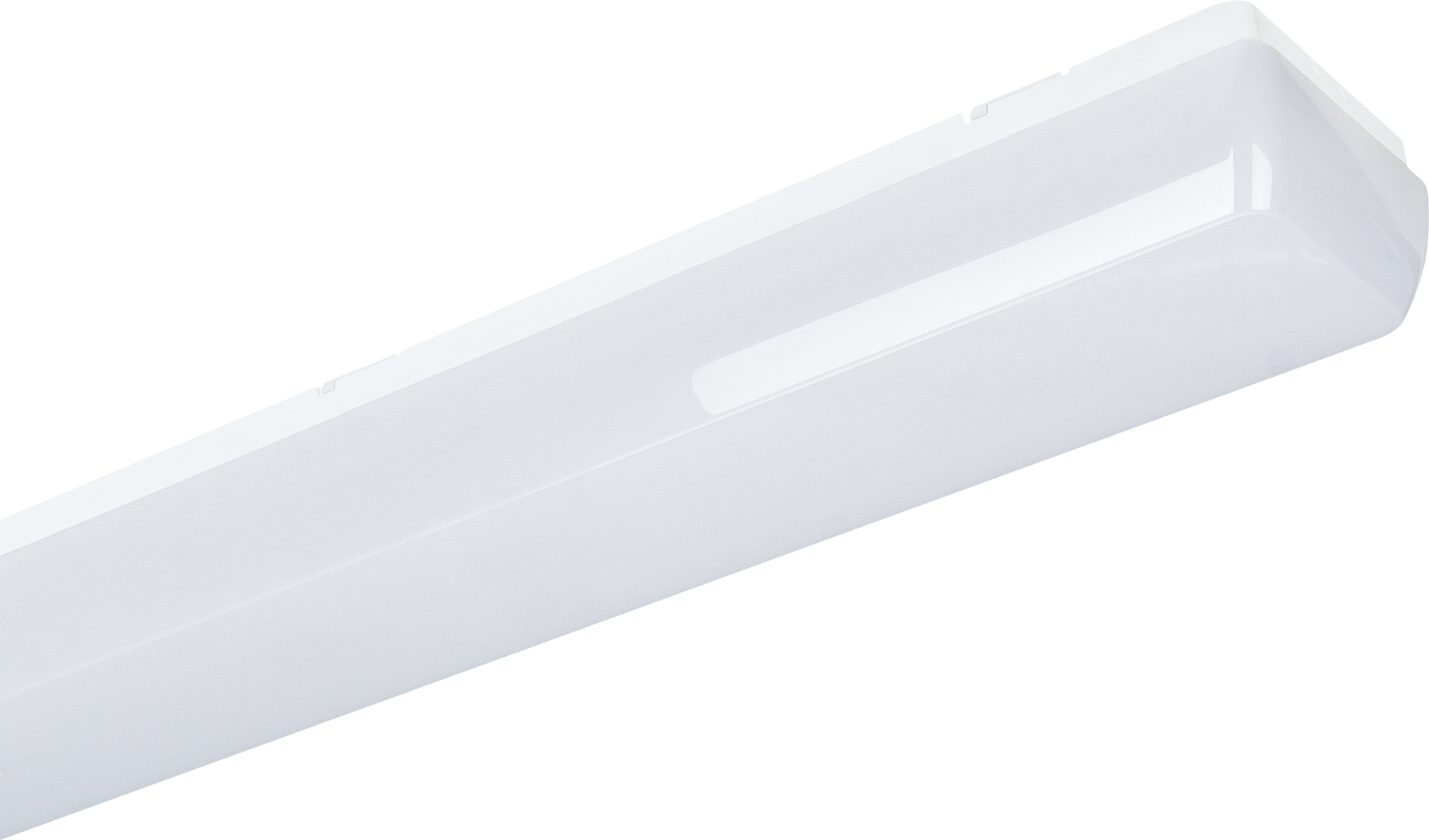

LED-Anbauleuchte 24258.4 IP54 50 W, 4000 K, 7130 lm, CRI>80 Wanne PC opal, 1160x159x85 mm

Datenblatt_LED_Feuchtraum_Wannenleuchte__Langfeld___Serie_24__de_en_2023_03.pdf Montageanleitung_LED_Feuchtraum_Wannenleuchte__Langfeld__Breite_109_mm____Serie_24__de_en_2025_.pdf

Serie 24

Rated luminous flux according to IEC 62722-2- 1: 7140 lm

Product nr.: 2463260-3

See all versions

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> Langfeldleuchte mit Schutzart IP54
> Homogene Ausleuchtung
> Einstellbare Leistung
> Auch in quadratischer und runder Ausführung erhätlich
> Erweiterbar mit Bewegungsmelder, Notlicht-PacK

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

Energy Efficiency-D

IP-54

Lifespan 50000-L90

LED

Risk group RG-1

Impact Protection IK10

Color Consistency SDCM-3

Ambient temperature -25°+35°

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED not exchangeable

Housing material:

Plastic

Housing colour:

White

Material cover:

Plastic, opal

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

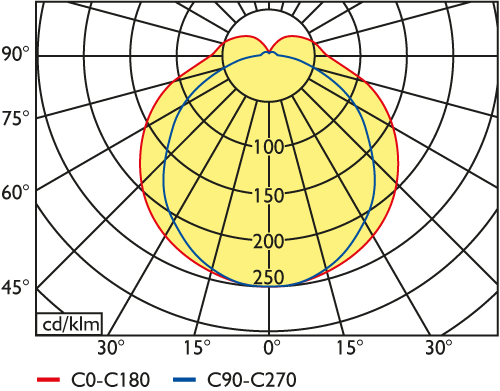

Light distribution:

Symmetric

Beam angle:

Open beam/diffuse

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

Impact strength:

IK10

Protection class according to IEC 61140:

Colour of light:

White

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Degree of protection (IP), front side:

IP54

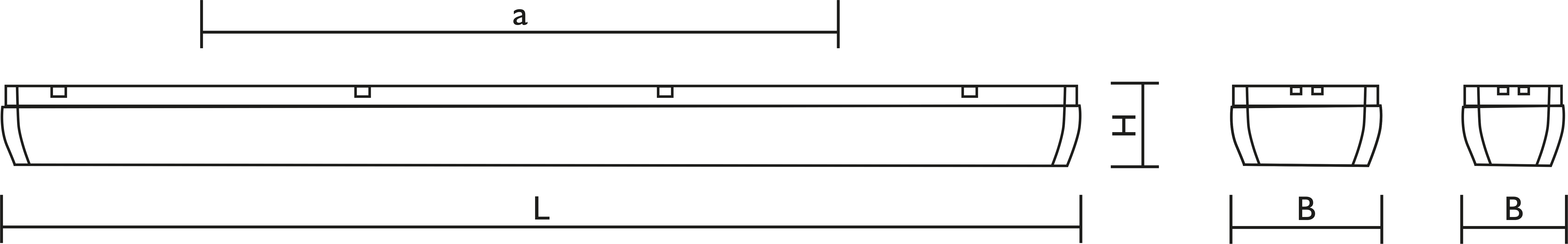

Length:

1160 mm

Height/depth:

85 mm

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Rated luminous flux according to IEC 62722-2- 1:

7140 lm

Downloads

Datenblatt_LED_Feuchtraum_Wannenleuchte__Langfeld___Serie_24__de_en_2023_03.pdf Montageanleitung_LED_Feuchtraum_Wannenleuchte__Langfeld__Breite_109_mm____Serie_24__de_en_2025_.pdf Montageanleitung_LED_Feuchtraum_Wannenleuchte__Langfeld__Breite_159_mm____Serie_24__de_en_2025_.pdf Licatec__LDT__Feuchtraum_Wannenleuchte_IP54_Serie_24.zip

All versions

Type	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED-Anbauleuchte 24236.4 IP54 36 W, 4000 K, 5120 lm, CRI>80 Wanne PC opal, 1160x159x85 mm	Rated luminous flux according to IEC 62722-2- 1 5130 lm	Product nr. 2463250-3
LED-Anbauleuchte 24236.4 IP54 36 W, 4000 K, 5120 lm, CRI>80 Wanne PC opal, 1160x159x85 mm Rated luminous flux according to IEC 62722-2- 1: 5130 lm Product-Nr.: 2463250-3 Rated luminous flux according to IEC 62722-2- 1: 5130 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24258.4 IP54 50 W, 4000 K, 7130 lm, CRI>80 Wanne PC opal, 1160x159x85 mm	Rated luminous flux according to IEC 62722-2- 1 7140 lm	Product nr. 2463260-3
LED-Anbauleuchte 24258.4 IP54 50 W, 4000 K, 7130 lm, CRI>80 Wanne PC opal, 1160x159x85 mm Rated luminous flux according to IEC 62722-2- 1: 7140 lm Product-Nr.: 2463260-3 Rated luminous flux according to IEC 62722-2- 1: 7140 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24236.4 IP54 22-38,5W/3170-5350lm/4000K/CRI>80 Wanne PC opal, 1160x159x85 mm	Rated luminous flux according to IEC 62722-2- 1 5350 lm	Product nr. 24110343MW
LED-Anbauleuchte 24236.4 IP54 22-38,5W/3170-5350lm/4000K/CRI>80 Wanne PC opal, 1160x159x85 mm Rated luminous flux according to IEC 62722-2- 1: 5350 lm Product-Nr.: 24110343MW Rated luminous flux according to IEC 62722-2- 1: 5350 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24158.4 IP54 26 W, 4000 K, 3610 lm, CRI>80 PC opal, 1160 mm, DIM DALI	Rated luminous flux according to IEC 62722-2- 1 3611 lm	Product nr. 2463160-3D
LED-Anbauleuchte 24158.4 IP54 26 W, 4000 K, 3610 lm, CRI>80 PC opal, 1160 mm, DIM DALI Rated luminous flux according to IEC 62722-2- 1: 3611 lm Product-Nr.: 2463160-3D Rated luminous flux according to IEC 62722-2- 1: 3611 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24158.4 IP54 16-27,5W/2250-3800lm/4000K/CRI>80 Wanne PC opal, 1160x109x85 mm	Rated luminous flux according to IEC 62722-2- 1 3800 lm	Product nr. 24110342MW
LED-Anbauleuchte 24158.4 IP54 16-27,5W/2250-3800lm/4000K/CRI>80 Wanne PC opal, 1160x109x85 mm Rated luminous flux according to IEC 62722-2- 1: 3800 lm Product-Nr.: 24110342MW Rated luminous flux according to IEC 62722-2- 1: 3800 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24136.4 IP54 19 W, 4000 K, 2600 lm, CRI>80 Wanne PC opal, 1160x109x85 mm	Rated luminous flux according to IEC 62722-2- 1 2610 lm	Product nr. 2463150-3
LED-Anbauleuchte 24136.4 IP54 19 W, 4000 K, 2600 lm, CRI>80 Wanne PC opal, 1160x109x85 mm Rated luminous flux according to IEC 62722-2- 1: 2610 lm Product-Nr.: 2463150-3 Rated luminous flux according to IEC 62722-2- 1: 2610 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24136.4 IP54 12-20W/1620-2740lm/4000K/CRI>80 Wanne PC opal, 1160x109x85 mm	Rated luminous flux according to IEC 62722-2- 1 2740 lm	Product nr. 24110341MW
LED-Anbauleuchte 24136.4 IP54 12-20W/1620-2740lm/4000K/CRI>80 Wanne PC opal, 1160x109x85 mm Rated luminous flux according to IEC 62722-2- 1: 2740 lm Product-Nr.: 24110341MW Rated luminous flux according to IEC 62722-2- 1: 2740 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24158.4 IP54 26 W, 4000 K, 3610 lm, CRI>80 Wanne PC opal, 1160x109x85 mm	Rated luminous flux according to IEC 62722-2- 1 3610 lm	Product nr. 2463160-3
LED-Anbauleuchte 24158.4 IP54 26 W, 4000 K, 3610 lm, CRI>80 Wanne PC opal, 1160x109x85 mm Rated luminous flux according to IEC 62722-2- 1: 3610 lm Product-Nr.: 2463160-3 Rated luminous flux according to IEC 62722-2- 1: 3610 lm Price only for registered users Log in To product

Type LED-Anbauleuchte 24258.4 IP54 30-53W/4380-7360lm/4000K/CRI>80 Wanne PC opal, 1160x159x85 mm	Rated luminous flux according to IEC 62722-2- 1 7360 lm	Product nr. 24110344MW
LED-Anbauleuchte 24258.4 IP54 30-53W/4380-7360lm/4000K/CRI>80 Wanne PC opal, 1160x159x85 mm Rated luminous flux according to IEC 62722-2- 1: 7360 lm Product-Nr.: 24110344MW Rated luminous flux according to IEC 62722-2- 1: 7360 lm Price only for registered users Log in To product
