ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED exchangeable

Housing material:

Aluminium

Surface protection housing:

Powder coating

Housing colour:

Black

Material cover:

Glass transparent

Type of grid:

None

Voltage type:

AC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

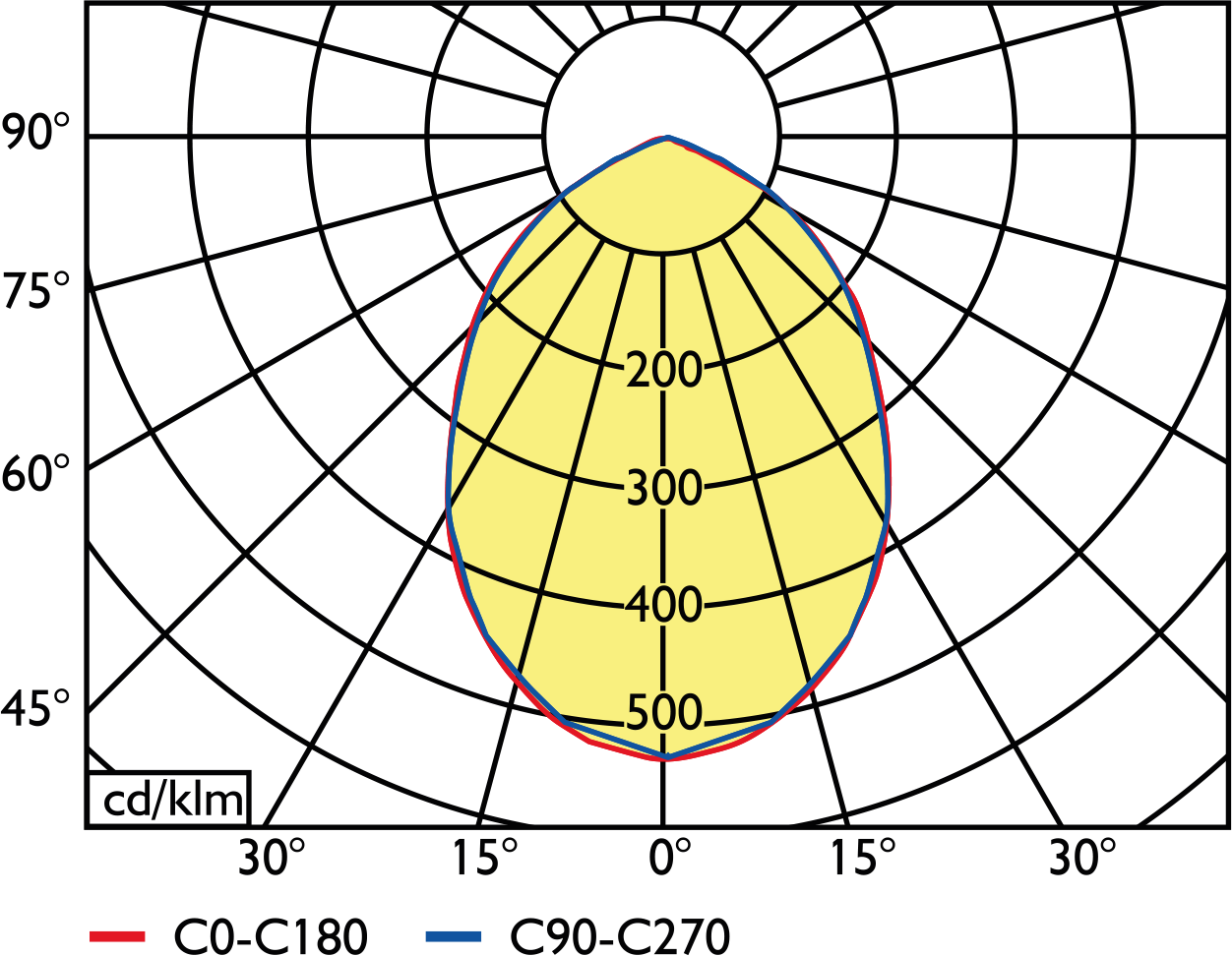

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM5

Light outlet:

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015:

D

Degree of protection (IP), rear side:

Other

Degree of protection (IP), front side:

IP66

Impact strength:

IK08

Protection class according to IEC 61140:

I

Emergency power supply system:

None

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Ending

Connection type:

Free conductor end

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

No

Luminous flux adjustable:

No

Beam angle adjustable:

No

Energy efficiency class:

D

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Max. system power:

50 W

Rated luminous flux according to IEC 62722-2- 1:

7000 lm

Conductor cross section:

1 mm²

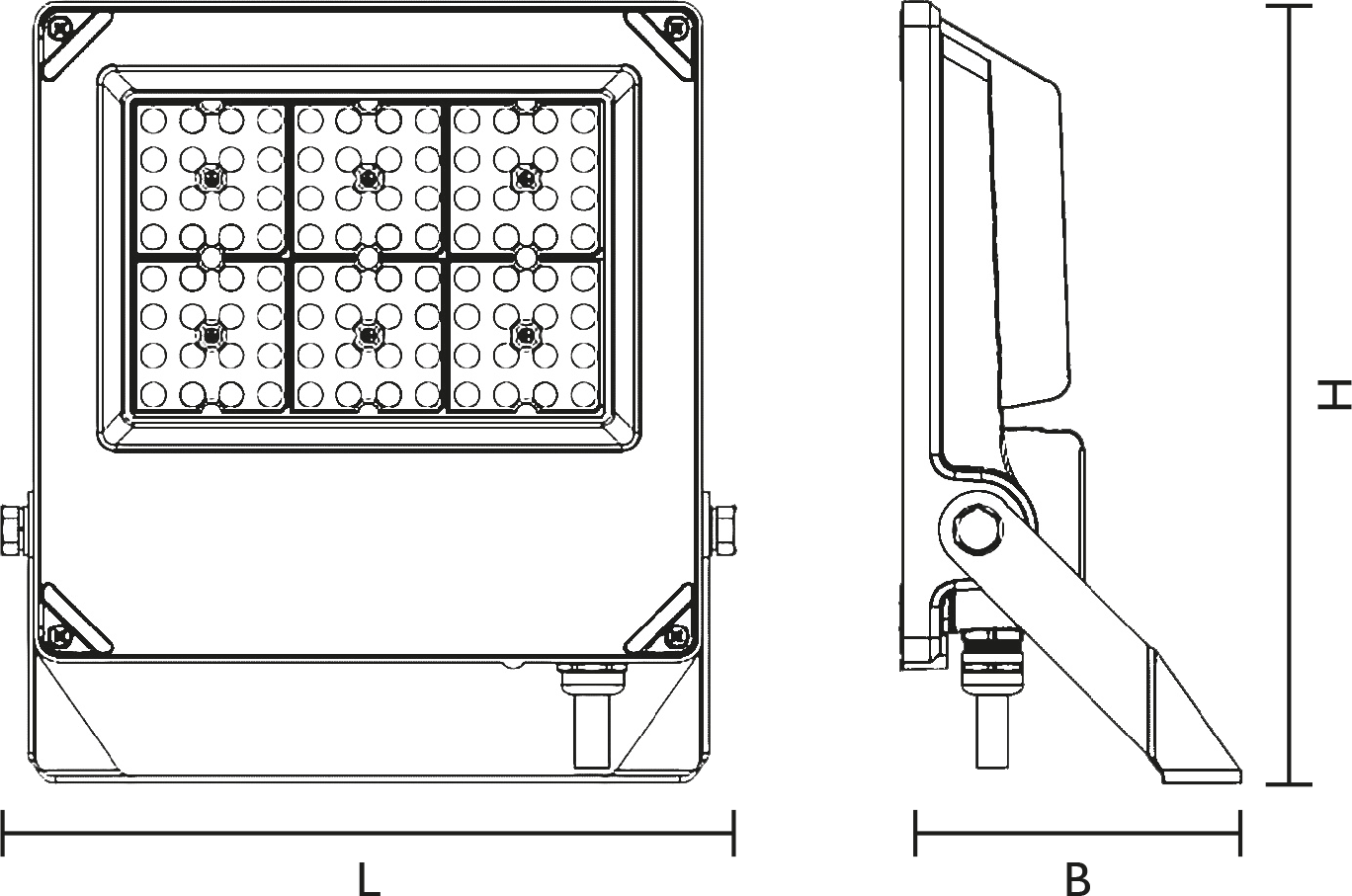

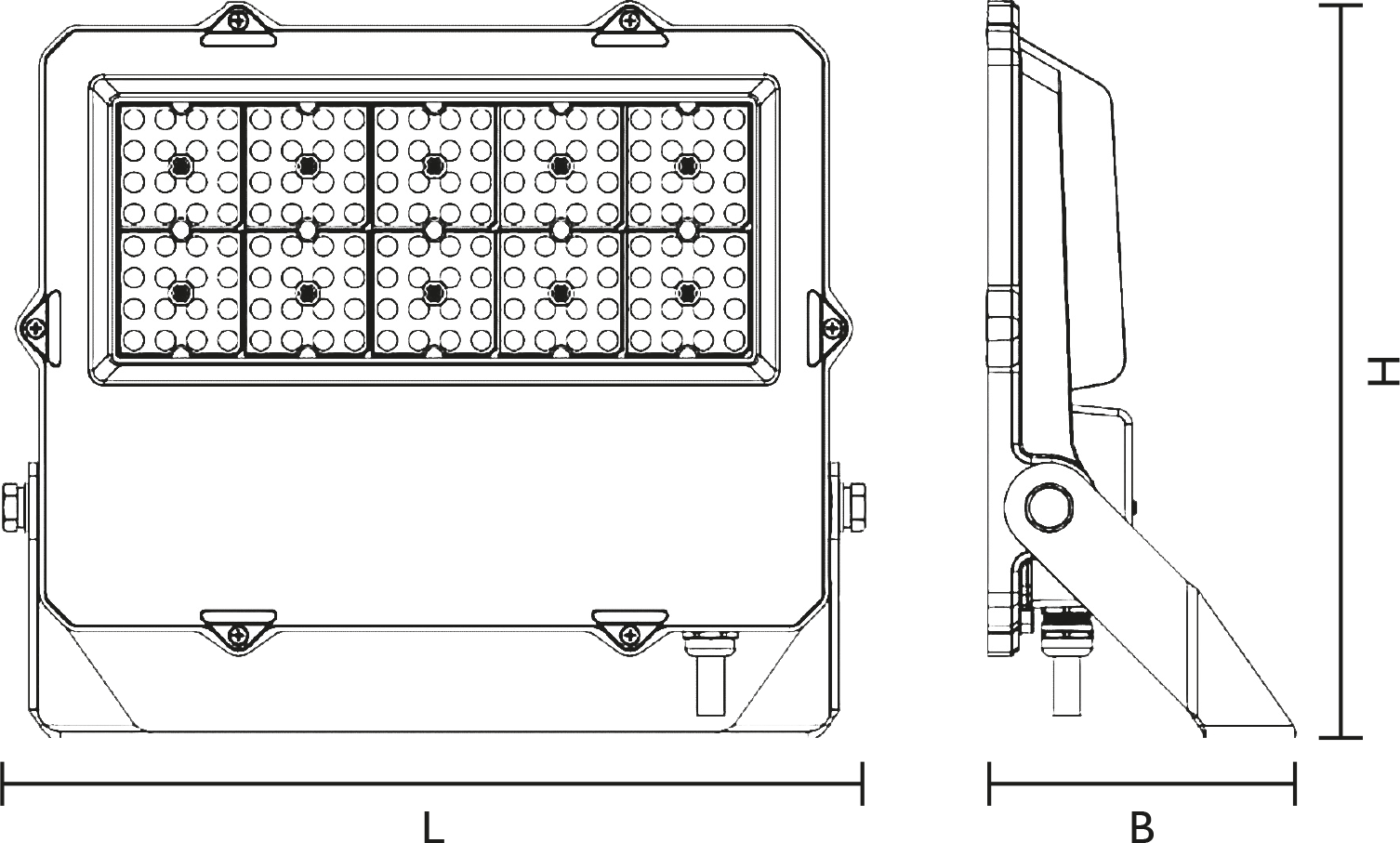

Width:

236 mm

Length:

109 mm

Height/depth:

251 mm
