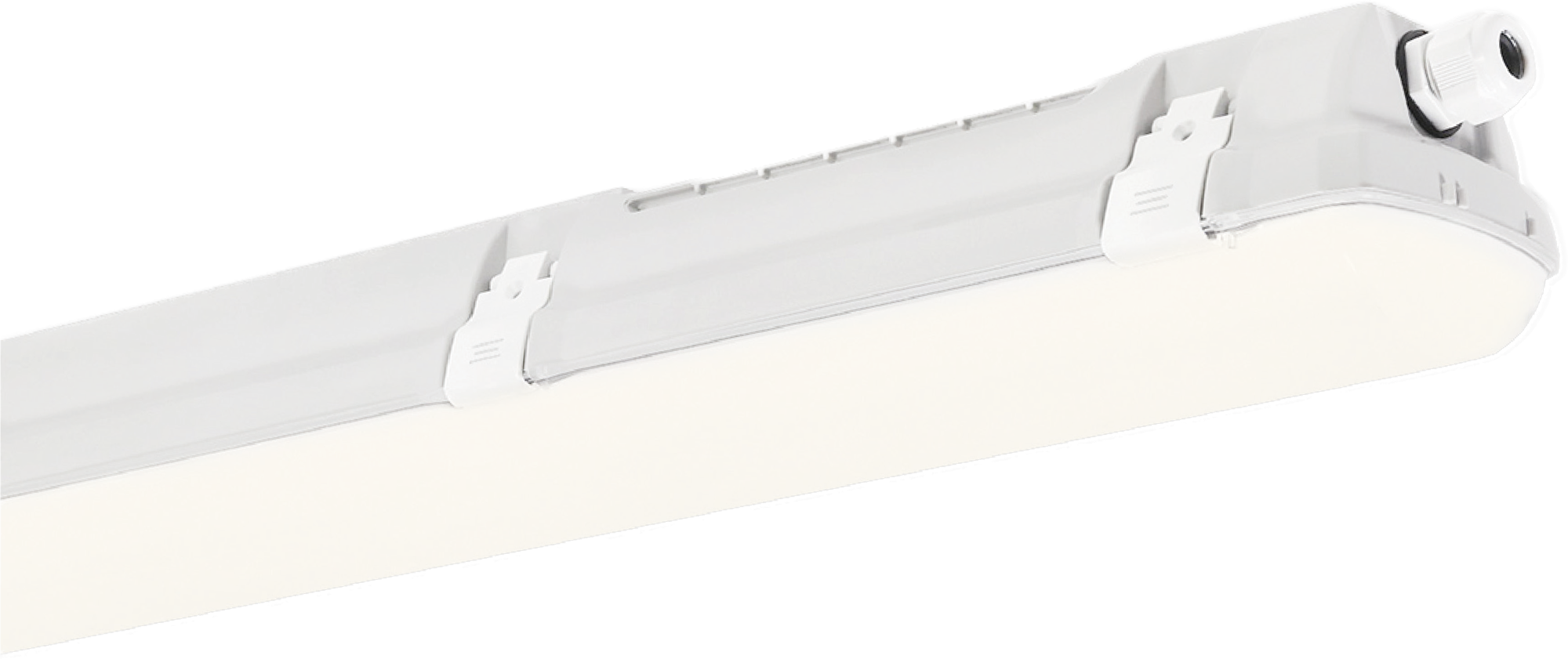

LED FR-Wannenl. 30060.15.4 IP66 9-15W, 1290-2190lm, 4000K ABS, 610x98x91 mm, CRI>80

Datenblatt_LED_Feuchtraum_Wannenleuchte___Serie_30_Agrar___de_en__2025_02.pdf

Feuchtraum-Wannenleuchten - Serie 30 Agrar

Width: 98 mm, Length: 610 mm, Colour temperature: 4000 K, Max. system power: 15 W, Rated luminous flux according to IEC 62722-2- 1: 2190 lm

Product nr.: 30105515MW

See all versions

Length

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

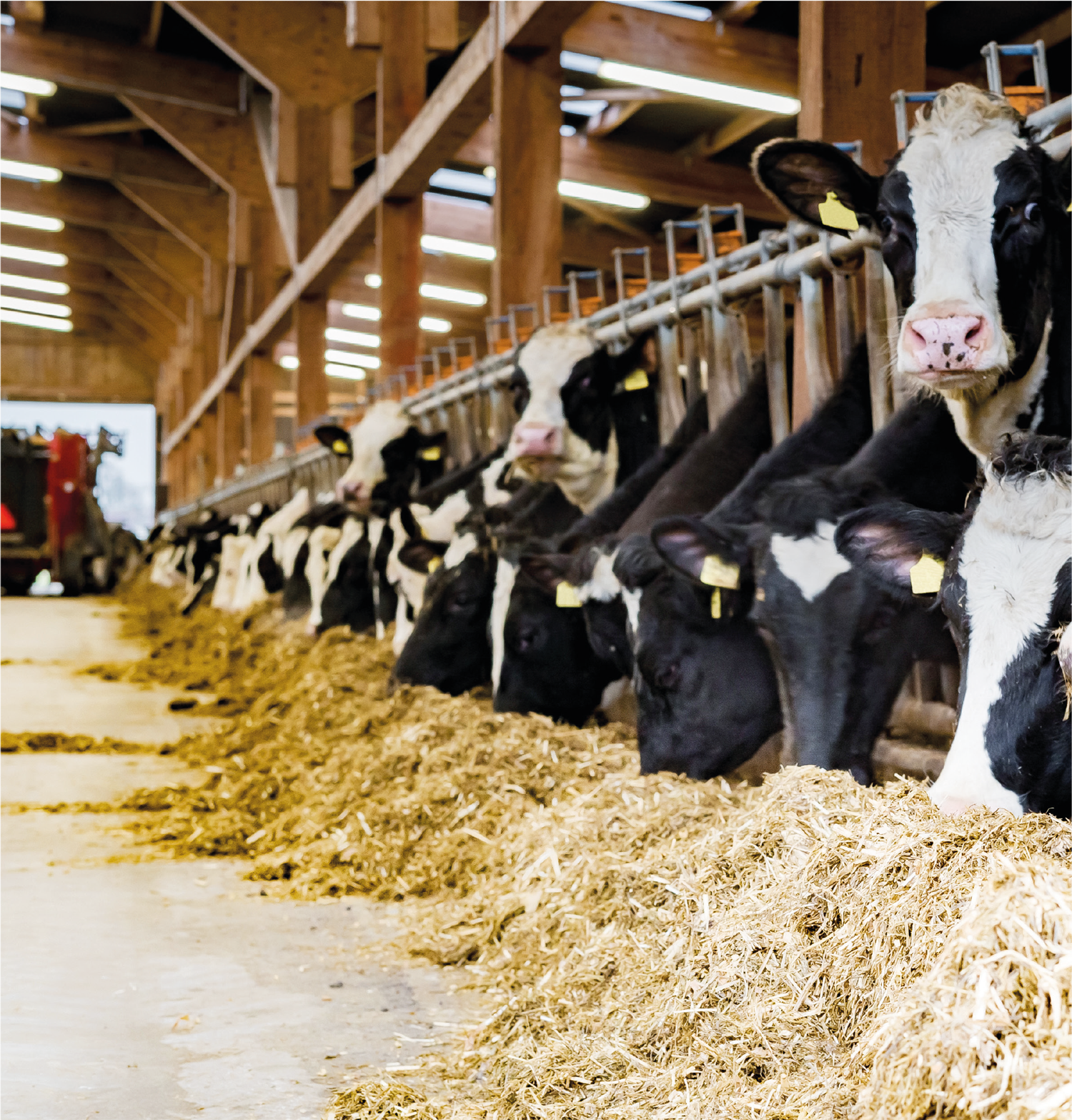

> Robuste Lichtlösung für landwirtschaftliche Betriebe
> Speziell entwickelt für den Einsatz in ammoniakhaltiger und feuchter Umgebung
> Leuchtengehäuse und opaler Diffusor aus ABS
> Hohe chemische Beständigkeit, UV stabilisiert
> Flickerfrei und gleichmäßige Lichtverteilung – reduziert Stress und fördert das Tierwohl

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-66

Lifespan 100000-L80

Lifespan 50000-L90

LED

Luminaire with limited surface temp

Pendant

Risk group RG-1

Impact Protection IK10

Color Consistency SDCM-3

Sconce

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED exchangeable

Housing material:

Plastic

Housing colour:

Grey

Material cover:

Plastic, opal

Voltage type:

AC/DC

Type of control gear:

LED operating device current-controlled

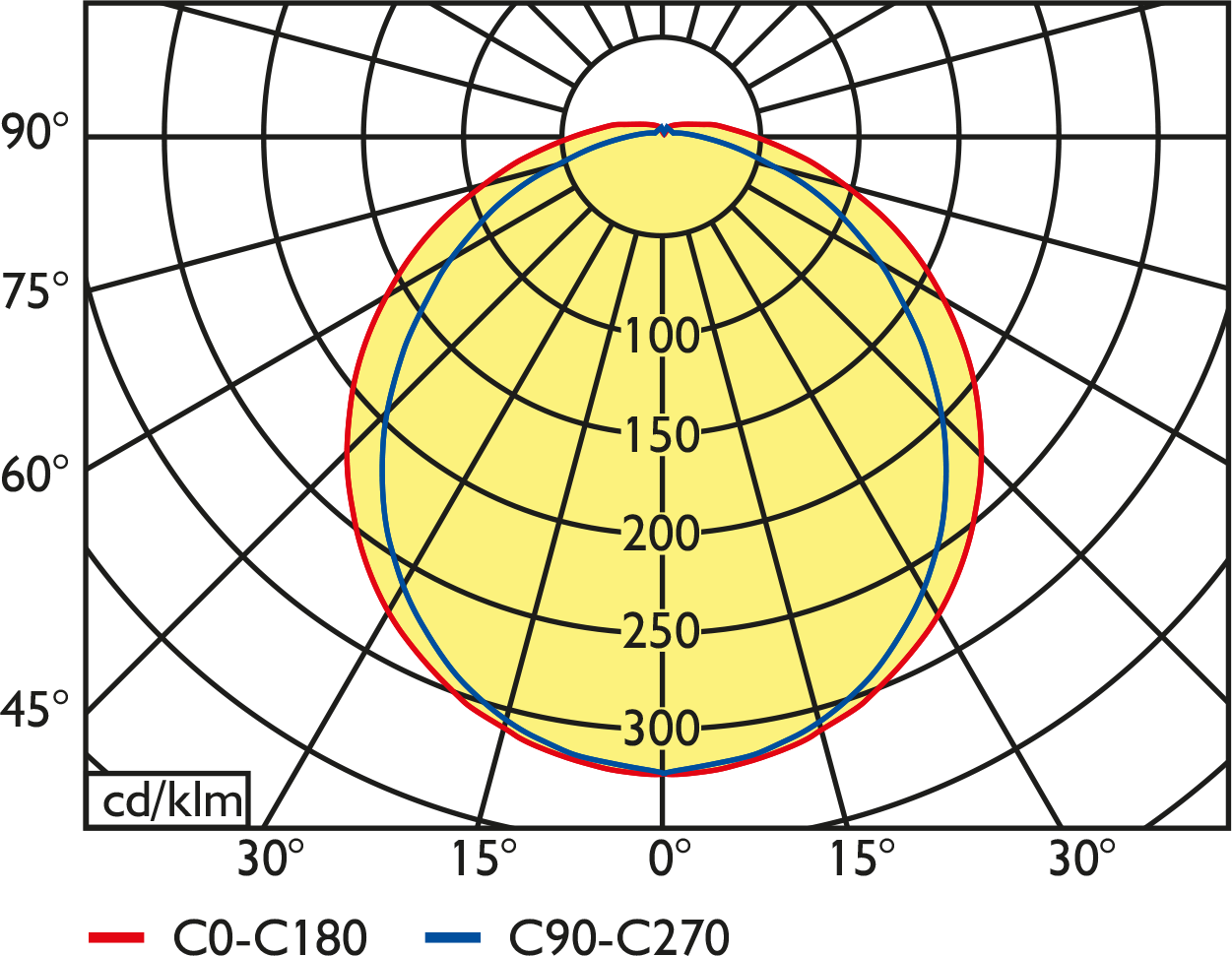

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), front side:

IP66

Impact strength:

IK10

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG1

Colour of light adjustable:

Beam angle adjustable:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

Height/depth:

91 mm

Width:

98 mm

Length:

610 mm

Max. system power:

15 W

Rated luminous flux according to IEC 62722-2- 1:

2190 lm

Downloads

Datenblatt_LED_Feuchtraum_Wannenleuchte___Serie_30_Agrar___de_en__2025_02.pdf

All versions

Type	Colour temperature	Width	Length	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED FR-Wannenl. 30120.27.4 IP66 16-27W, 2490-4200lm, 4000K ABS, 1170x98x91 mm, CRI>80	Colour temperature 4000 K	Width 98 mm	Length 1170 mm	Max. system power 27 W	Rated luminous flux according to IEC 62722-2- 1 4200 lm	Product nr. 30105518MW
LED FR-Wannenl. 30120.27.4 IP66 16-27W, 2490-4200lm, 4000K ABS, 1170x98x91 mm, CRI>80 Width: 98 mm, Length: 1170 mm, Colour temperature: 4000 K, Max. system power: 27 W, Rated luminous flux according to IEC 62722-2- 1: 4200 lm Product-Nr.: 30105518MW Width: 98 mm Length: 1170 mm Colour temperature: 4000 K Max. system power: 27 W Rated luminous flux according to IEC 62722-2- 1: 4200 lm Price only for registered users Log in To product

Type LED FR-Wannenl. 30120.39.4 IP66 22-39W, 3600-6050lm, 4000K ABS, 1170x98x91 mm, CRI>80	Colour temperature 4000 K	Width 98 mm	Length 1170 mm	Max. system power 39 W	Rated luminous flux according to IEC 62722-2- 1 6050 lm	Product nr. 30105519MW
LED FR-Wannenl. 30120.39.4 IP66 22-39W, 3600-6050lm, 4000K ABS, 1170x98x91 mm, CRI>80 Width: 98 mm, Length: 1170 mm, Colour temperature: 4000 K, Max. system power: 39 W, Rated luminous flux according to IEC 62722-2- 1: 6050 lm Product-Nr.: 30105519MW Width: 98 mm Length: 1170 mm Colour temperature: 4000 K Max. system power: 39 W Rated luminous flux according to IEC 62722-2- 1: 6050 lm Price only for registered users Log in To product

Type LED FR-Wannenl. 30060.15.4 IP66 9-15W, 1290-2190lm, 4000K ABS, 610x98x91 mm, CRI>80	Colour temperature 4000 K	Width 98 mm	Length 610 mm	Max. system power 15 W	Rated luminous flux according to IEC 62722-2- 1 2190 lm	Product nr. 30105515MW
LED FR-Wannenl. 30060.15.4 IP66 9-15W, 1290-2190lm, 4000K ABS, 610x98x91 mm, CRI>80 Width: 98 mm, Length: 610 mm, Colour temperature: 4000 K, Max. system power: 15 W, Rated luminous flux according to IEC 62722-2- 1: 2190 lm Product-Nr.: 30105515MW Width: 98 mm Length: 610 mm Colour temperature: 4000 K Max. system power: 15 W Rated luminous flux according to IEC 62722-2- 1: 2190 lm Price only for registered users Log in To product

Type LED FR-Wannenl. 30150.33.4 IP66 19-33W, 3070-5200lm, 4000K ABS, 1450x98x91 mm, CRI>80	Colour temperature 4000 K	Width 98 mm	Length 1450 mm	Max. system power 33 W	Rated luminous flux according to IEC 62722-2- 1 5200 lm	Product nr. 30105522MW
LED FR-Wannenl. 30150.33.4 IP66 19-33W, 3070-5200lm, 4000K ABS, 1450x98x91 mm, CRI>80 Width: 98 mm, Length: 1450 mm, Colour temperature: 4000 K, Max. system power: 33 W, Rated luminous flux according to IEC 62722-2- 1: 5200 lm Product-Nr.: 30105522MW Width: 98 mm Length: 1450 mm Colour temperature: 4000 K Max. system power: 33 W Rated luminous flux according to IEC 62722-2- 1: 5200 lm Price only for registered users Log in To product

Type LED FR-Wannenl. 30150.47.4 IP66 27-47W, 4440-7460lm, 4000K ABS, 1450x98x91 mm, CRI>80	Colour temperature 4000 K	Width 98 mm	Length 1450 mm	Max. system power 47 W	Rated luminous flux according to IEC 62722-2- 1 7460 lm	Product nr. 30105523MW
LED FR-Wannenl. 30150.47.4 IP66 27-47W, 4440-7460lm, 4000K ABS, 1450x98x91 mm, CRI>80 Width: 98 mm, Length: 1450 mm, Colour temperature: 4000 K, Max. system power: 47 W, Rated luminous flux according to IEC 62722-2- 1: 7460 lm Product-Nr.: 30105523MW Width: 98 mm Length: 1450 mm Colour temperature: 4000 K Max. system power: 47 W Rated luminous flux according to IEC 62722-2- 1: 7460 lm Price only for registered users Log in To product
