LED-FR Wannenleuchte 33150 35/40/50/60 W, max.6900 lm, einstellbar 1500mm/3000/4000/5000K, CRI>80, opal, IP66

Datenblatt_LED_Feuchtraum_Wannenleuchte__Serie_33___de_en__2022_04.pdf Montageanleitung_LED_Feuchtraum_Wannenleuchte___Serie_33__de_en__2024_04_15__Tridonic_Treiber_.pdf

Feuchtraum-Wannenleuchten - Serie 33

Length: 1490 mm, Colour temperature: 4000 K, Max. system power: 60 W, Rated luminous flux according to IEC 62722-2- 1: 6900 lm

Product nr.: 3301500

See all versions

Length

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

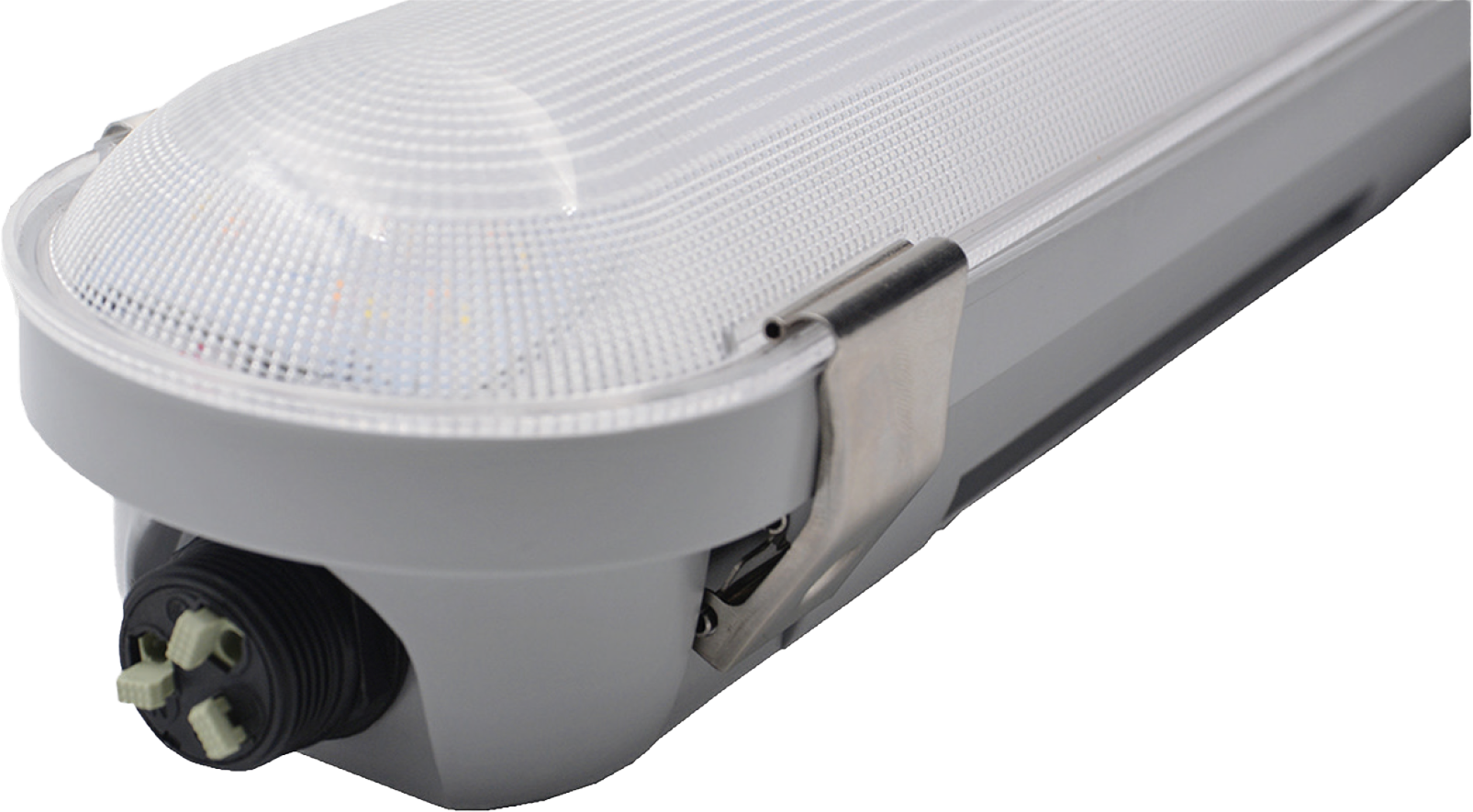

> Leuchte mit CCT-Schalter, Schutzart IP66
> Schlagfestes, langlebiges ABS Leuchtengehäuse
> Edelstahl-Klips (V2A): korrosionsbeständig und besonders haltbar
> Einstellbare Farbtemperatur 3.000 / 4.000 / 5.000 K
> Einstellbare Leistung bis 60 W

Special features

Surface-mounted luminaire

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-66

Lifespan 50000-L80

LED

Luminaire with limited surface temp

Pendant

Risk group RG-0

Impact Protection IK08

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED exchangeable

Housing material:

Plastic

Housing colour:

Grey

Material cover:

Plastic, opal

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM6

Light outlet:

Direct

Degree of protection (IP), front side:

IP66

Impact strength:

IK08

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

Luminous flux adjustable:

Positions

Beam angle adjustable:

Energy efficiency class:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

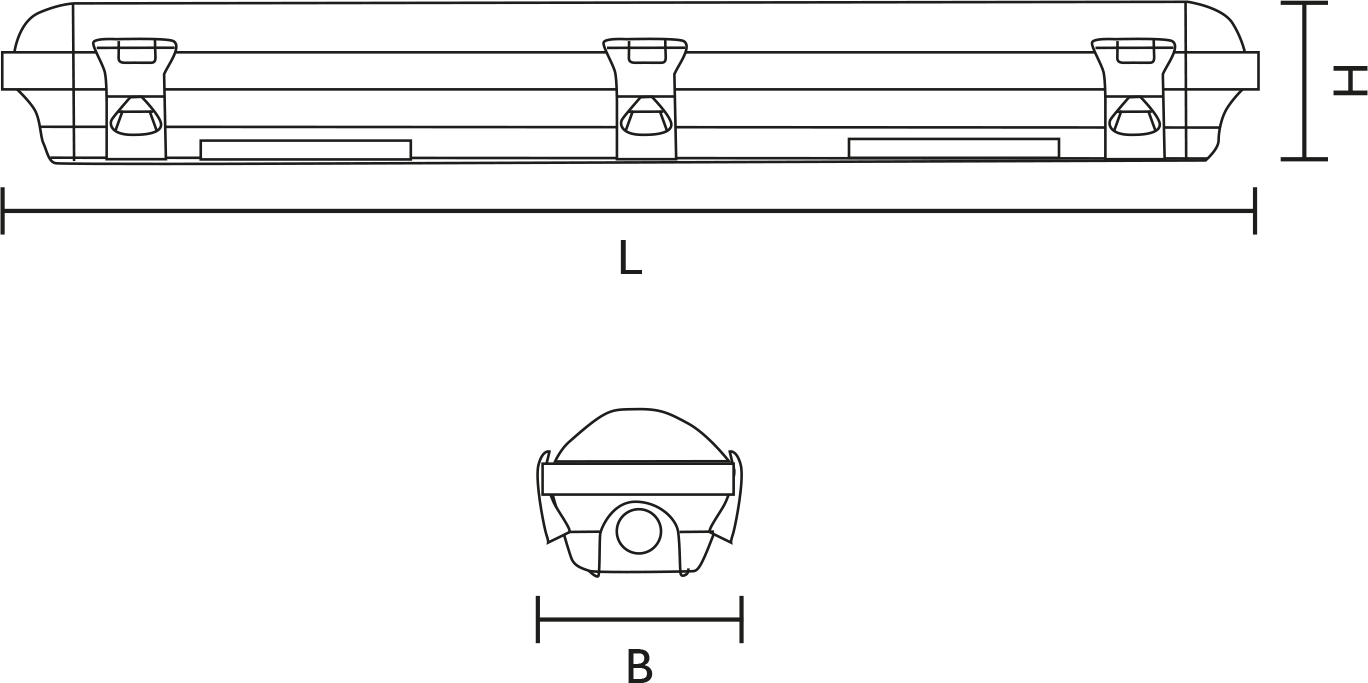

Width:

95 mm

Height/depth:

75 mm

Length:

1490 mm

Max. system power:

60 W

Rated luminous flux according to IEC 62722-2- 1:

6900 lm

Downloads

Datenblatt_LED_Feuchtraum_Wannenleuchte__Serie_33___de_en__2022_04.pdf Montageanleitung_LED_Feuchtraum_Wannenleuchte___Serie_33__de_en__2024_04_15__Tridonic_Treiber_.pdf

All versions

Type	Colour temperature	Length	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED-FR Wannenleuchte 33150 35/40/50/60 W, max.6900 lm, einstellbar 1500mm/3000/4000/5000K, CRI>80, opal, IP66	Colour temperature 4000 K	Length 1490 mm	Max. system power 60 W	Rated luminous flux according to IEC 62722-2- 1 6900 lm	Product nr. 3301500
LED-FR Wannenleuchte 33150 35/40/50/60 W, max.6900 lm, einstellbar 1500mm/3000/4000/5000K, CRI>80, opal, IP66 Length: 1490 mm, Colour temperature: 4000 K, Max. system power: 60 W, Rated luminous flux according to IEC 62722-2- 1: 6900 lm Product-Nr.: 3301500 Length: 1490 mm Colour temperature: 4000 K Max. system power: 60 W Rated luminous flux according to IEC 62722-2- 1: 6900 lm Price only for registered users Log in Product data sheet To product

Type LED-FR Wannenleuchte 33120 25/30/35/40 W, max.5750 lm, einstellbar 1200mm/3000/4000/5000K, CRI>80, opal, IP66	Colour temperature 4000 K	Length 1190 mm	Max. system power 40 W	Rated luminous flux according to IEC 62722-2- 1 5750 lm	Product nr. 3301200-1
LED-FR Wannenleuchte 33120 25/30/35/40 W, max.5750 lm, einstellbar 1200mm/3000/4000/5000K, CRI>80, opal, IP66 Length: 1190 mm, Colour temperature: 4000 K, Max. system power: 40 W, Rated luminous flux according to IEC 62722-2- 1: 5750 lm Product-Nr.: 3301200-1 Length: 1190 mm Colour temperature: 4000 K Max. system power: 40 W Rated luminous flux according to IEC 62722-2- 1: 5750 lm Price only for registered users Log in To product

Type LED-FR Wannenleuchte 33150 35/40/50/60 W, max.8700 lm, einstellbar 1500mm/3000/4000/5000K, CRI>80, opal, IP66	Colour temperature 4000 K	Length 1490 mm	Max. system power 60 W	Rated luminous flux according to IEC 62722-2- 1 8700 lm	Product nr. 3301500-1
LED-FR Wannenleuchte 33150 35/40/50/60 W, max.8700 lm, einstellbar 1500mm/3000/4000/5000K, CRI>80, opal, IP66 Length: 1490 mm, Colour temperature: 4000 K, Max. system power: 60 W, Rated luminous flux according to IEC 62722-2- 1: 8700 lm Product-Nr.: 3301500-1 Length: 1490 mm Colour temperature: 4000 K Max. system power: 60 W Rated luminous flux according to IEC 62722-2- 1: 8700 lm Price only for registered users Log in To product

Type LED-FR Wannenleuchte 33120 25/30/35/40 W, max.4600 lm, einstellbar 1200mm/3000/4000/5000K, CRI>80, opal, IP66	Colour temperature 4000 K	Length 1190 mm	Max. system power 40 W	Rated luminous flux according to IEC 62722-2- 1 4600 lm	Product nr. 3301200
LED-FR Wannenleuchte 33120 25/30/35/40 W, max.4600 lm, einstellbar 1200mm/3000/4000/5000K, CRI>80, opal, IP66 Length: 1190 mm, Colour temperature: 4000 K, Max. system power: 40 W, Rated luminous flux according to IEC 62722-2- 1: 4600 lm Product-Nr.: 3301200 Length: 1190 mm Colour temperature: 4000 K Max. system power: 40 W Rated luminous flux according to IEC 62722-2- 1: 4600 lm Price only for registered users Log in Product data sheet To product
