LED Mastleuchte MSTML 88 /88W 5000K/11200lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau

Datenblatt_LED_Mastansatz__bzw.__aufsatzleuchte___MSTML__de_en_2024_02.pdf Montageanleitung_LED_Mastansatz__bzw.__aufsatzleuchte___MSTML__de_en__2021_08.pdf

Außenleuchten - MSTML

Colour temperature: 5000 K, Max. system power: 88 W, Rated luminous flux according to IEC 62722-2- 1: 11200 lm, Beam angle: 150 °

Product nr.: 990004-6

See all versions

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Wetterfest – ideal für den Außeneinsatz

Gleichmäßiges, blendfreies Licht für Straßen, Wege und Plätze
Anpassbar an Projektanforderungen
Schnelle und sichere Installation an Standard-Mastaufnahmen
Langlebige Komponenten und geringe Folgekosten

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-70

IP-65

Lifespan 100000-L70

LED

Pole-top luminaire

Pole lamp

Risk group RG-0

Impact Protection IK08

Technical specifications

General

ETIM-class:

Luminaire for streets and places

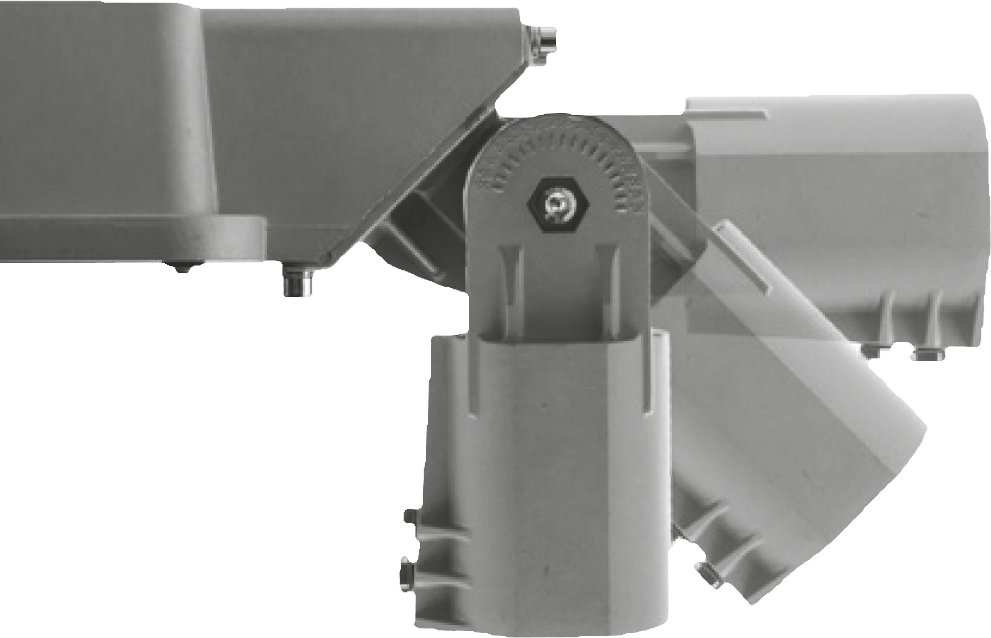

Mounting method:

Post top/side entry

Lamp type:

LED exchangeable

Housing material:

Aluminium

Surface protection:

Powder coating

Housing colour:

Grey

Material cover:

Glass transparent

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

Colour consistency (McAdam ellipse):

SDCM3

Degree of protection (IP):

IP65

Impact strength:

IK08

Protection class according to IEC 61140:

Remote control:

None

Colour rendering index CRI:

70-79

Type of wiring:

Ending

Connection type:

Other

Type of connection for sensor/communication module:

None

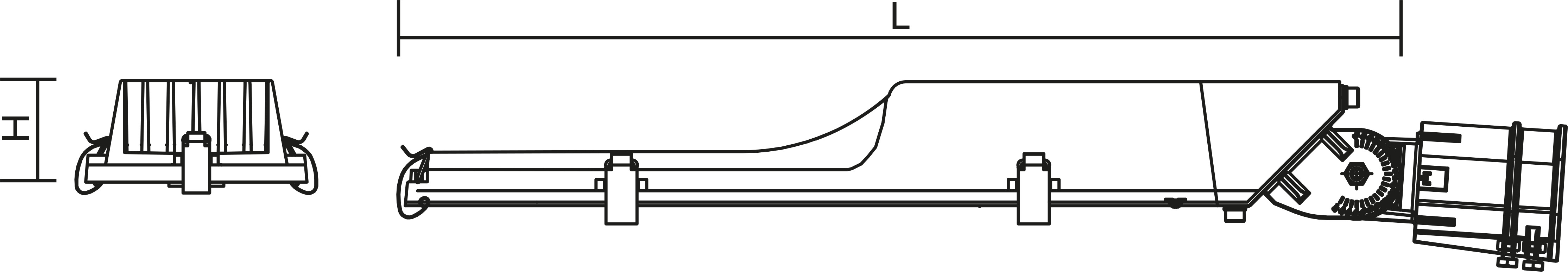

Width:

220 mm

Length:

695 mm

Height/depth:

90 mm

Rated lifetime L70/B50 at 25 °C:

100000 h

Colour temperature:

5000 K

Max. system power:

88 W

Rated luminous flux according to IEC 62722-2- 1:

11200 lm

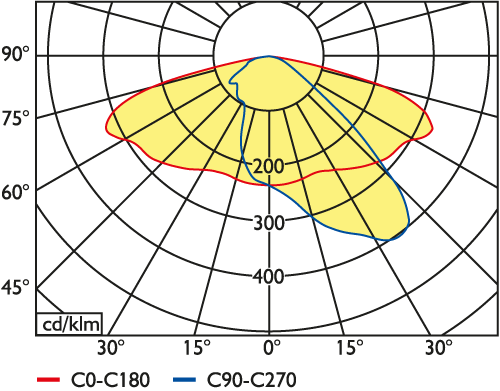

Beam angle:

150 °

Downloads

Datenblatt_LED_Mastansatz__bzw.__aufsatzleuchte___MSTML__de_en_2024_02.pdf Montageanleitung_LED_Mastansatz__bzw.__aufsatzleuchte___MSTML__de_en__2021_08.pdf

All versions

Type	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Beam angle	Product nr.
Type LED Mastleuchte MSTML 88 /88W 5000K/11200lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau	Colour temperature 5000 K	Max. system power 88 W	Rated luminous flux according to IEC 62722-2- 1 11200 lm	Beam angle 150 °	Product nr. 990004-6
LED Mastleuchte MSTML 88 /88W 5000K/11200lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau Colour temperature: 5000 K, Max. system power: 88 W, Rated luminous flux according to IEC 62722-2- 1: 11200 lm, Beam angle: 150 ° Product-Nr.: 990004-6 Colour temperature: 5000 K Max. system power: 88 W Rated luminous flux according to IEC 62722-2- 1: 11200 lm Beam angle: 150 ° Price only for registered users Log in To product

Type LED Mastleuchte MSTML 30 /30 W 5000K/3900lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau	Colour temperature 5000 K	Max. system power 30 W	Rated luminous flux according to IEC 62722-2- 1 3900 lm	Beam angle 150 °	Product nr. 990001-6
LED Mastleuchte MSTML 30 /30 W 5000K/3900lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau Colour temperature: 5000 K, Max. system power: 30 W, Rated luminous flux according to IEC 62722-2- 1: 3900 lm, Beam angle: 150 ° Product-Nr.: 990001-6 Colour temperature: 5000 K Max. system power: 30 W Rated luminous flux according to IEC 62722-2- 1: 3900 lm Beam angle: 150 ° Price only for registered users Log in To product

Type LED Mastleuchte MSTML 58 /58 W 5000K/7700lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau	Colour temperature 5000 K	Max. system power 58 W	Rated luminous flux according to IEC 62722-2- 1 7700 lm	Beam angle 150 °	Product nr. 990003-6
LED Mastleuchte MSTML 58 /58 W 5000K/7700lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau Colour temperature: 5000 K, Max. system power: 58 W, Rated luminous flux according to IEC 62722-2- 1: 7700 lm, Beam angle: 150 ° Product-Nr.: 990003-6 Colour temperature: 5000 K Max. system power: 58 W Rated luminous flux according to IEC 62722-2- 1: 7700 lm Beam angle: 150 ° Price only for registered users Log in To product

Type LED Mastleuchte MSTML 47 /47 W 5000K/5700lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau	Colour temperature 5000 K	Max. system power 47 W	Rated luminous flux according to IEC 62722-2- 1 5700 lm	Beam angle 150 °	Product nr. 990002-6
LED Mastleuchte MSTML 47 /47 W 5000K/5700lm/Zopf-Dm.=60 mm Gehäuse Aluminium grau Colour temperature: 5000 K, Max. system power: 47 W, Rated luminous flux according to IEC 62722-2- 1: 5700 lm, Beam angle: 150 ° Product-Nr.: 990002-6 Colour temperature: 5000 K Max. system power: 47 W Rated luminous flux according to IEC 62722-2- 1: 5700 lm Beam angle: 150 ° Price only for registered users Log in To product
