ETIM-class:

Ceiling-/wall luminaire

Lamp type:

LED not exchangeable

Housing material:

Aluminium

Surface protection housing:

Anodised

Housing colour:

Aluminium

Material cover:

Plastic, structured

Type of grid:

None

Voltage type:

AC

Type of control gear:

LED operating device current-controlled

Light distributor:

Diffuser lens/optic/panel

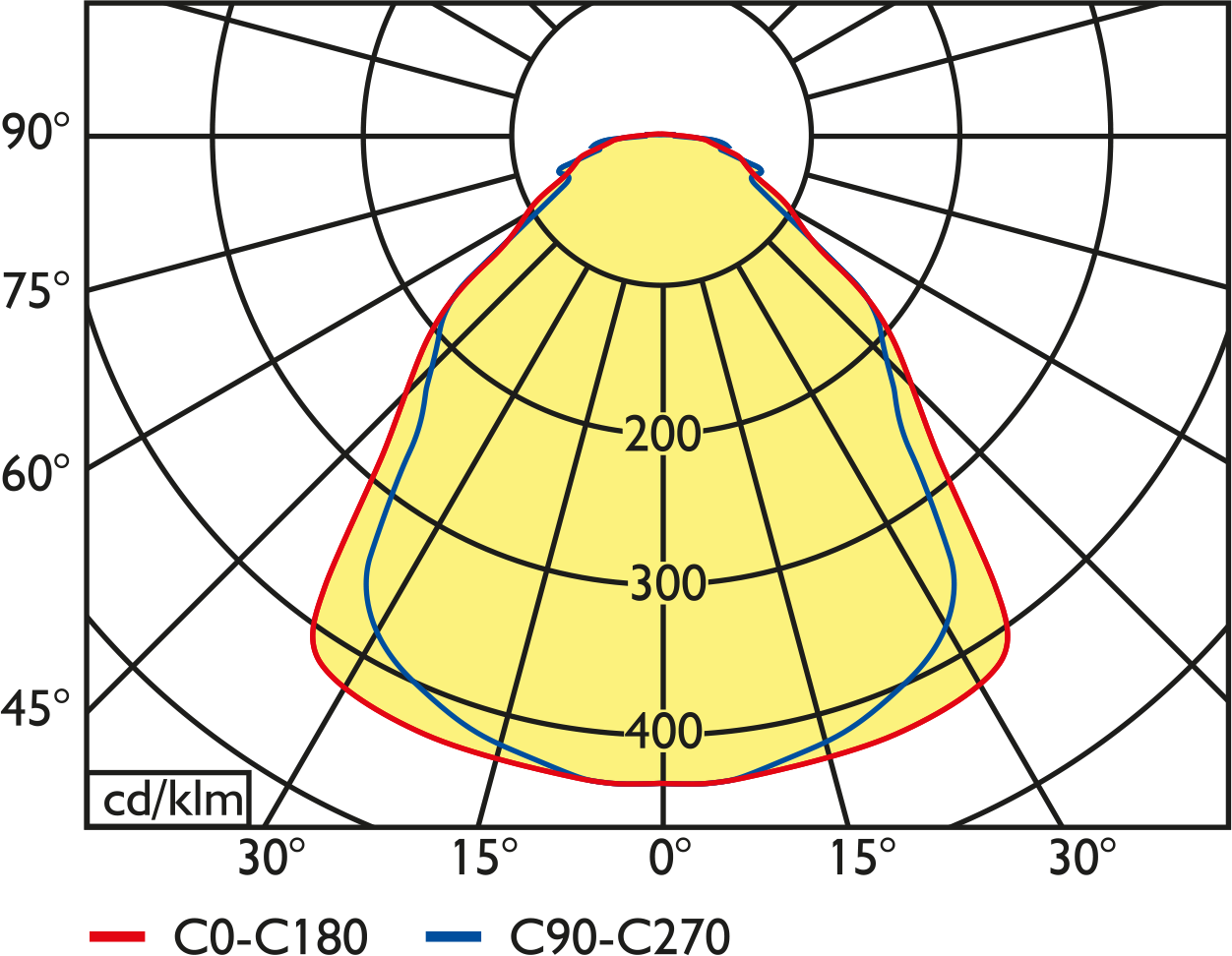

Light distribution:

Symmetric

Beam angle:

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP40

Impact strength:

IK03

Protection class according to IEC 61140:

I

Emergency function monitoring system:

None

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

No

Luminous flux adjustable:

No

Beam angle adjustable:

No

Rated lifetime L70/B50 at 25 °C:

50000 h

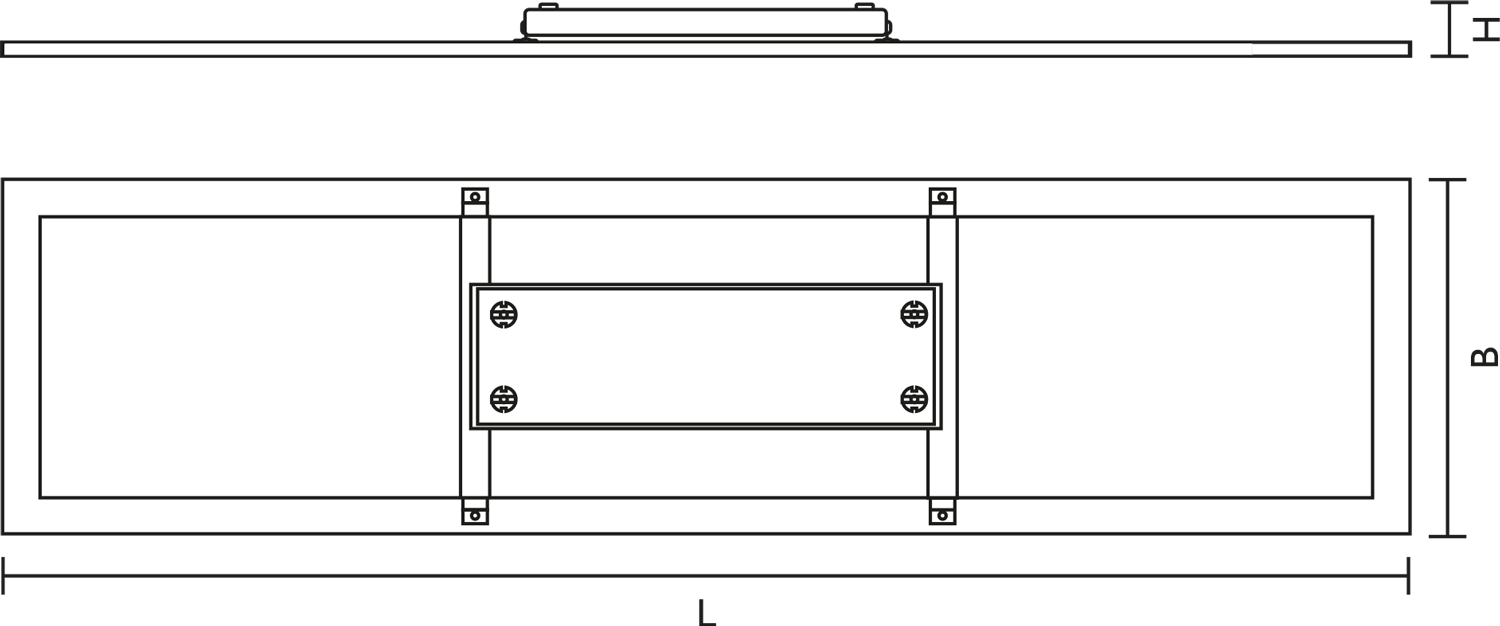

Width:

296 mm

Length:

1196 mm

Height/depth:

60 mm

Colour temperature:

3800 K

Max. system power:

35 W

Rated luminous flux according to IEC 62722-2- 1:

3900 lm
