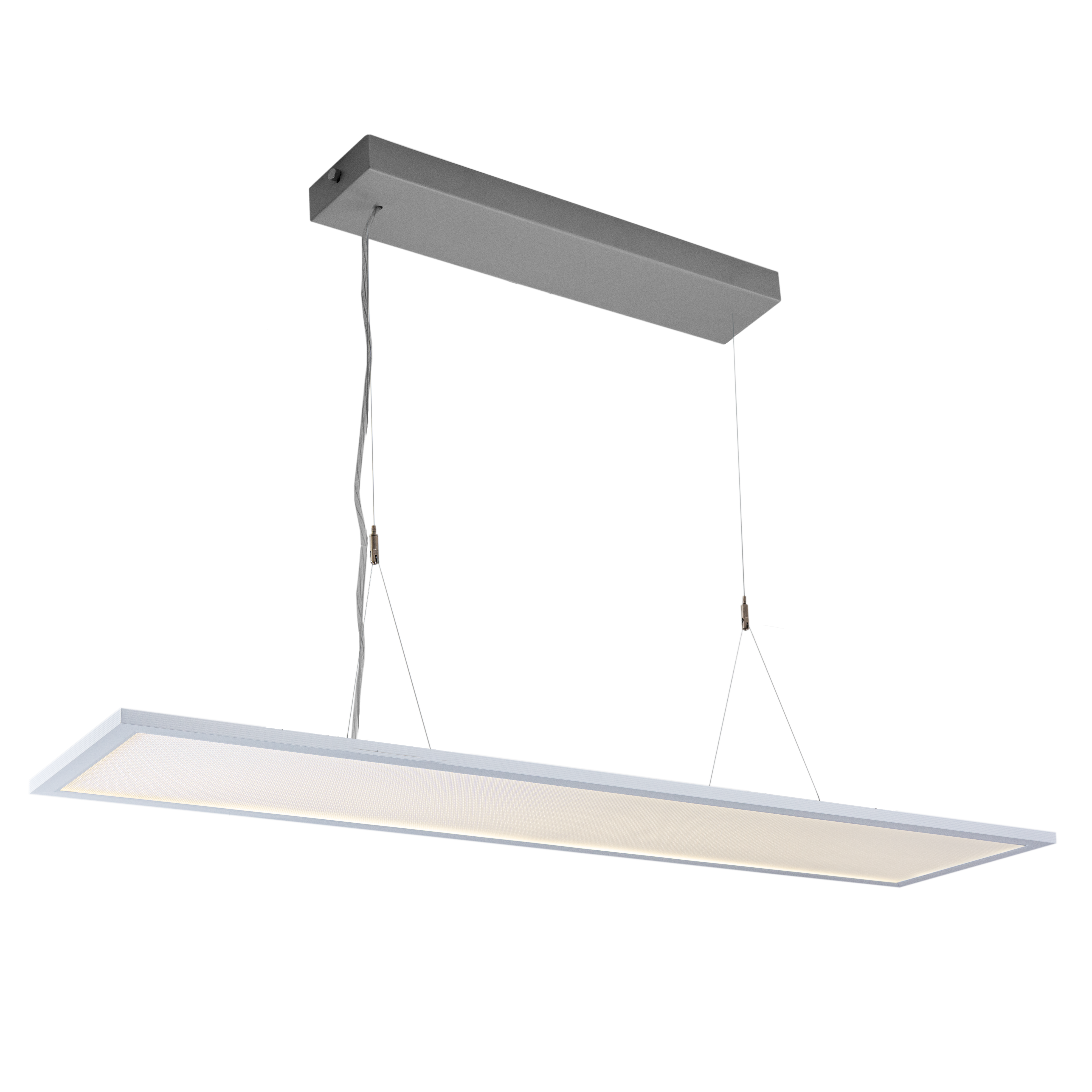

LED-Pendelleuchte MPDI 70.4 70W/4000K/9100lm/L=1200 mm dir./indir./CRI>80/AL elox

Datenblatt_LED_Pendelleuchte__direkt_indirekt___MPDI__de_en_2023_03.pdf Montageanleitung_LED_Pendelleuchte__direkt_indirekt___MPDI__de_en__2021_08.pdf

Pendelleuchten - MPDI

Width: 300 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 70 W, Rated luminous flux according to IEC 62722-2- 1: 9100 lm

Product nr.: 3382013-6

See all versions

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> Direkte und indirekte Lichtverteilung für blendfreies Arbeiten und stimmungsvolle Atmosphäre
> Ermüdungsfreies Sehen – perfekt für Bildschirmarbeitsplätze
> Inklusive höhenverstellbarer Seilabhängung für flexible Installation
> Flaches Design fügt sich harmonisch in jedes Raumkonzept ein

Special features

Connected loads 220-240 V, 50-60 Hz

Color-Rendering-Index CRI-80

IP-20

Lifespan 50000-L80

LED

Pendant

Risk group RG-0

Glare Rating UGR-19

Technical specifications

General

ETIM-class:

Pendant luminaire

Housing material:

Aluminium

Housing colour:

Aluminium

Material cover:

Plastic, structured

Voltage type:

Light distributor:

Diffuser lens/optic/panel

Light distribution:

Symmetric

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct/indirect

Degree of protection (IP):

IP20

Impact strength:

IK03

Protection class according to IEC 61140:

Colour rendering index CRI:

80-89

Colour of light adjustable:

Luminous flux adjustable:

Beam angle adjustable:

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Height/depth:

15 mm

Rated lifetime L70/B50 at 25 °C:

50000 h

Beam angle:

105 °

Width:

300 mm

Length:

1200 mm

Colour temperature:

4000 K

Max. system power:

70 W

Rated luminous flux according to IEC 62722-2- 1:

9100 lm

Downloads

Datenblatt_LED_Pendelleuchte__direkt_indirekt___MPDI__de_en_2023_03.pdf Montageanleitung_LED_Pendelleuchte__direkt_indirekt___MPDI__de_en__2021_08.pdf

All versions

Type	Width	Length	Colour temperature	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LED-Pendelleuchte MPDI 34.4 34W/4000K/4800lm/L=1200 mm dir./indir./CRI>80/AL elox	Width 300 mm	Length 1200 mm	Colour temperature 4000 K	Max. system power 34 W	Rated luminous flux according to IEC 62722-2- 1 4800 lm	Product nr. 3382011-6
LED-Pendelleuchte MPDI 34.4 34W/4000K/4800lm/L=1200 mm dir./indir./CRI>80/AL elox Width: 300 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 34 W, Rated luminous flux according to IEC 62722-2- 1: 4800 lm Product-Nr.: 3382011-6 Width: 300 mm Length: 1200 mm Colour temperature: 4000 K Max. system power: 34 W Rated luminous flux according to IEC 62722-2- 1: 4800 lm Price only for registered users Log in To product

Type LED-Pendelleuchte MPDI 70.4 70W/4000K/9100lm/L=1200 mm dir./indir./CRI>80/AL elox	Width 300 mm	Length 1200 mm	Colour temperature 4000 K	Max. system power 70 W	Rated luminous flux according to IEC 62722-2- 1 9100 lm	Product nr. 3382013-6
LED-Pendelleuchte MPDI 70.4 70W/4000K/9100lm/L=1200 mm dir./indir./CRI>80/AL elox Width: 300 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 70 W, Rated luminous flux according to IEC 62722-2- 1: 9100 lm Product-Nr.: 3382013-6 Width: 300 mm Length: 1200 mm Colour temperature: 4000 K Max. system power: 70 W Rated luminous flux according to IEC 62722-2- 1: 9100 lm Price only for registered users Log in To product

Type LED-Pendelleuchte MPDI 50.4 50W/4000K/6800lm/L=1200 mm dir./indir./CRI>80/AL elox	Width 300 mm	Length 1200 mm	Colour temperature 4000 K	Max. system power 50 W	Rated luminous flux according to IEC 62722-2- 1 6800 lm	Product nr. 3382012-6
LED-Pendelleuchte MPDI 50.4 50W/4000K/6800lm/L=1200 mm dir./indir./CRI>80/AL elox Width: 300 mm, Length: 1200 mm, Colour temperature: 4000 K, Max. system power: 50 W, Rated luminous flux according to IEC 62722-2- 1: 6800 lm Product-Nr.: 3382012-6 Width: 300 mm Length: 1200 mm Colour temperature: 4000 K Max. system power: 50 W Rated luminous flux according to IEC 62722-2- 1: 6800 lm Price only for registered users Log in To product
