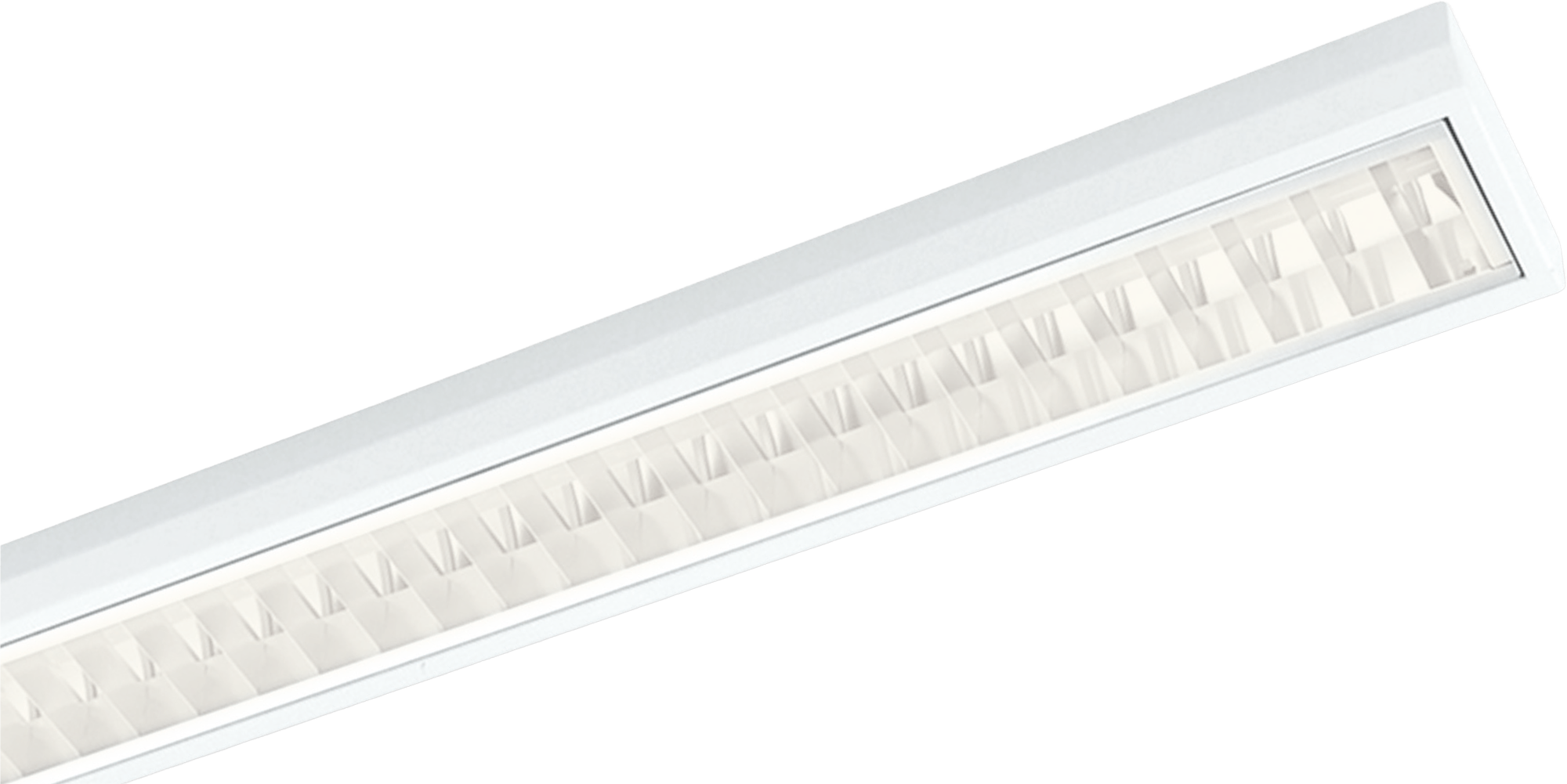

LLX 37.4.1.M/Raster DPR-HG 19-37W/2500-4500lm/4000K 1210x153x52 mm/CRI>80

Datenblatt_LED_Raster_Anbauleuchte___LLX_einstellbar__de_en_2023_09.pdf Montageanleitung_LED_Raster_Anbauleuchte___LLX__de_en__2025_09.pdf

Anbauleuchten viereckig - LLX

Width: 153 mm, Length: 1210 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 4500 lm

Product nr.: 3390002MW

See all versions

Width

Length

Max. system power

Rated luminous flux according to IEC 62722-2- 1

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

> Klassische Rasterleuchte mit hoher Effizienz
> Optimierte Lichtlenkung für maximale Effizienz und minimale Blendung (UGR ≤19)
> Individuell anpassbar dank verschiedener Leistungsvarianten, Montagezubehör und RALTönen
> Pulverbeschichtet für Langlebigkeit und ein hochwertiges Erscheinungsbild

Special features

Surface-mounted luminaire

Connected loads 100-240 V, 50-60 Hz

IP-20

Lifespan 50000-L80

LED

Risk group RG-0

Color Consistency SDCM-3

Glare Rating UGR-19

Technical specifications

General

ETIM-class:

Ceiling-/wall luminaire

Housing material:

Steel

Surface protection housing:

Powder coating

Housing colour:

White

Material cover:

Other

Type of grid:

High-gloss

Voltage type:

Type of control gear:

LED operating device current-controlled

Light distributor:

Reflector

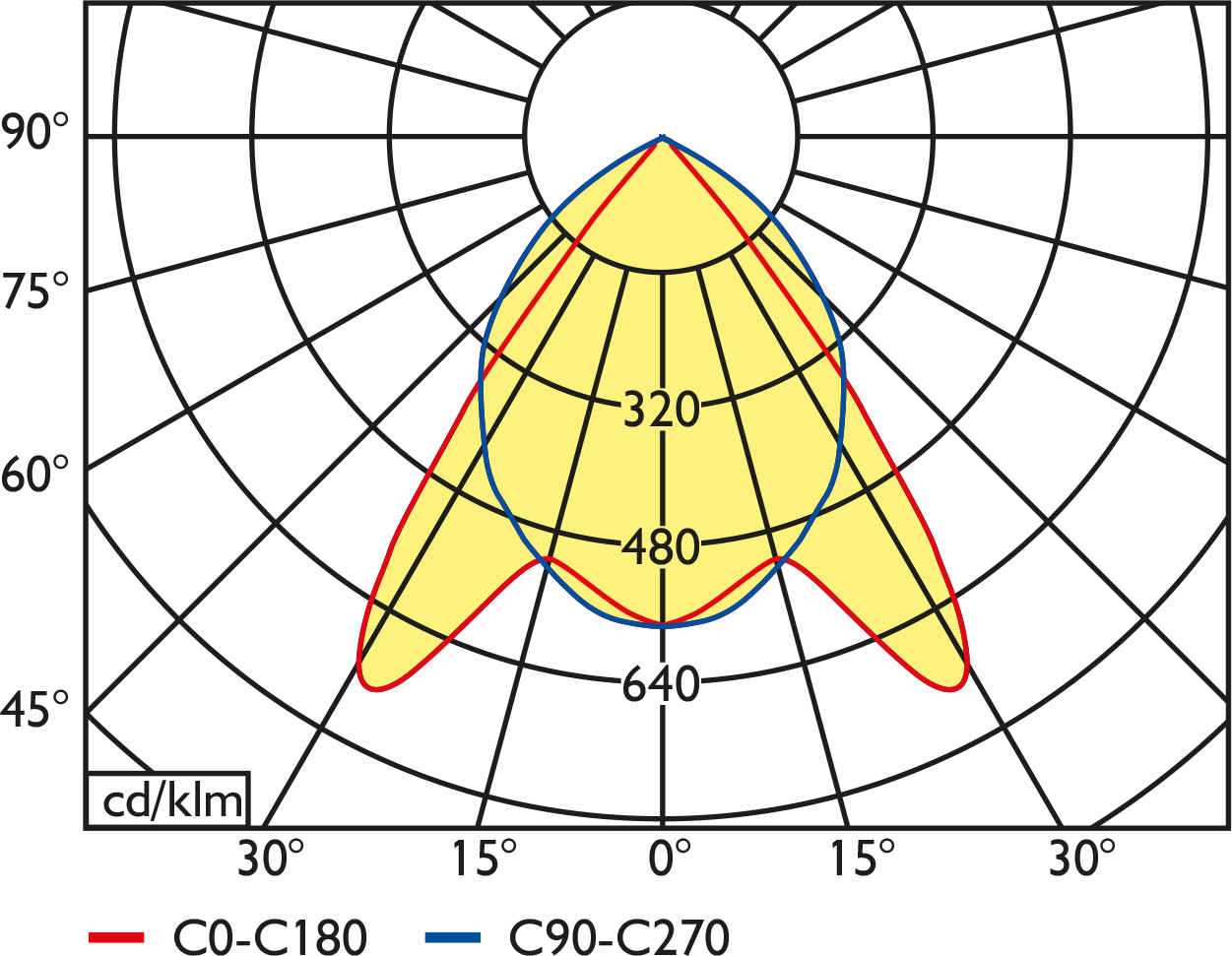

Light distribution:

Symmetric

Beam angle:

41-80° - Wide beam

Colour consistency (McAdam ellipse):

SDCM3

Light outlet:

Direct

Degree of protection (IP), rear side:

IP20

Degree of protection (IP), front side:

IP20

Impact strength:

IK03

Protection class according to IEC 61140:

Filament test according to IEC 60695-2-11:

650 °C - 30 s

Colour rendering index CRI:

80-89

Type of wiring:

Suitable for loop-through wiring

Connection type:

Push-in clamp

Photobiological safety according to EN 62471:

RG0

Colour of light adjustable:

Luminous flux adjustable:

Positions

Beam angle adjustable:

Colour temperature:

4000 K

Rated lifetime L70/B50 at 25 °C:

50000 h

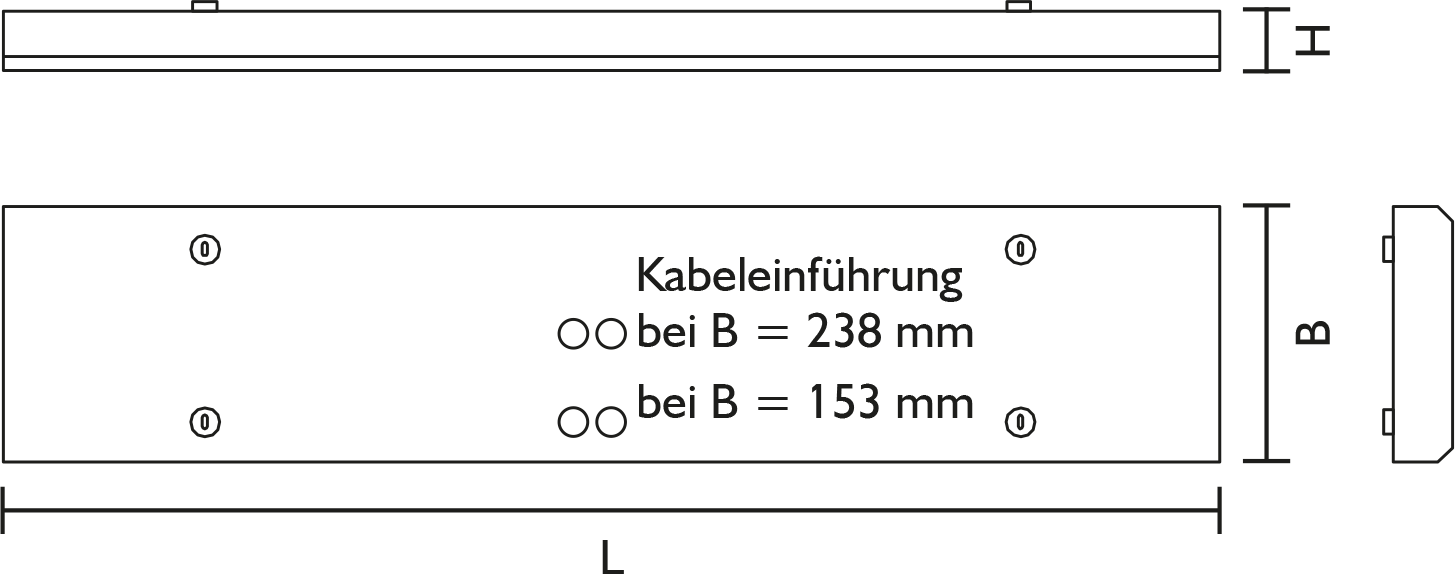

Height/depth:

52 mm

Width:

153 mm

Length:

1210 mm

Max. system power:

37 W

Rated luminous flux according to IEC 62722-2- 1:

4500 lm

Downloads

Datenblatt_LED_Raster_Anbauleuchte___LLX_einstellbar__de_en_2023_09.pdf Montageanleitung_LED_Raster_Anbauleuchte___LLX__de_en__2025_09.pdf

All versions

Type	Colour temperature	Width	Length	Max. system power	Rated luminous flux according to IEC 62722-2- 1	Product nr.
Type LLX 46.4.1.L/Raster DPR-HG 22-46W/3000-6000lm/4000K 1510x153x52 mmCRI>80	Colour temperature 4000 K	Width 153 mm	Length 1510 mm	Max. system power 46 W	Rated luminous flux according to IEC 62722-2- 1 6000 lm	Product nr. 3390004MW
LLX 46.4.1.L/Raster DPR-HG 22-46W/3000-6000lm/4000K 1510x153x52 mmCRI>80 Width: 153 mm, Length: 1510 mm, Colour temperature: 4000 K, Max. system power: 46 W, Rated luminous flux according to IEC 62722-2- 1: 6000 lm Product-Nr.: 3390004MW Width: 153 mm Length: 1510 mm Colour temperature: 4000 K Max. system power: 46 W Rated luminous flux according to IEC 62722-2- 1: 6000 lm Price only for registered users Log in To product

Type LLX 58.4.2.L/Raster DPR-HG 33-58W/4400-7000lm/4000K 1510x238x52 mm/CRI>80	Colour temperature 4000 K	Width 258 mm	Length 1510 mm	Max. system power 58 W	Rated luminous flux according to IEC 62722-2- 1 7000 lm	Product nr. 3390000MW
LLX 58.4.2.L/Raster DPR-HG 33-58W/4400-7000lm/4000K 1510x238x52 mm/CRI>80 Width: 258 mm, Length: 1510 mm, Colour temperature: 4000 K, Max. system power: 58 W, Rated luminous flux according to IEC 62722-2- 1: 7000 lm Product-Nr.: 3390000MW Width: 258 mm Length: 1510 mm Colour temperature: 4000 K Max. system power: 58 W Rated luminous flux according to IEC 62722-2- 1: 7000 lm Price only for registered users Log in To product

Type LLX 37.4.1.M/Raster DPR-HG 19-37W/2500-4500lm/4000K 1210x153x52 mm/CRI>80	Colour temperature 4000 K	Width 153 mm	Length 1210 mm	Max. system power 37 W	Rated luminous flux according to IEC 62722-2- 1 4500 lm	Product nr. 3390002MW
LLX 37.4.1.M/Raster DPR-HG 19-37W/2500-4500lm/4000K 1210x153x52 mm/CRI>80 Width: 153 mm, Length: 1210 mm, Colour temperature: 4000 K, Max. system power: 37 W, Rated luminous flux according to IEC 62722-2- 1: 4500 lm Product-Nr.: 3390002MW Width: 153 mm Length: 1210 mm Colour temperature: 4000 K Max. system power: 37 W Rated luminous flux according to IEC 62722-2- 1: 4500 lm Price only for registered users Log in To product

Type LLX 39.4.2.M/Raster DPR-HG 21-39W/2400-5000lm/4000K 1210x238x52 mm/CRI>80	Colour temperature 4000 K	Width 258 mm	Length 1210 mm	Max. system power 39 W	Rated luminous flux according to IEC 62722-2- 1 5000 lm	Product nr. 3390001MW
LLX 39.4.2.M/Raster DPR-HG 21-39W/2400-5000lm/4000K 1210x238x52 mm/CRI>80 Width: 258 mm, Length: 1210 mm, Colour temperature: 4000 K, Max. system power: 39 W, Rated luminous flux according to IEC 62722-2- 1: 5000 lm Product-Nr.: 3390001MW Width: 258 mm Length: 1210 mm Colour temperature: 4000 K Max. system power: 39 W Rated luminous flux according to IEC 62722-2- 1: 5000 lm Price only for registered users Log in To product
