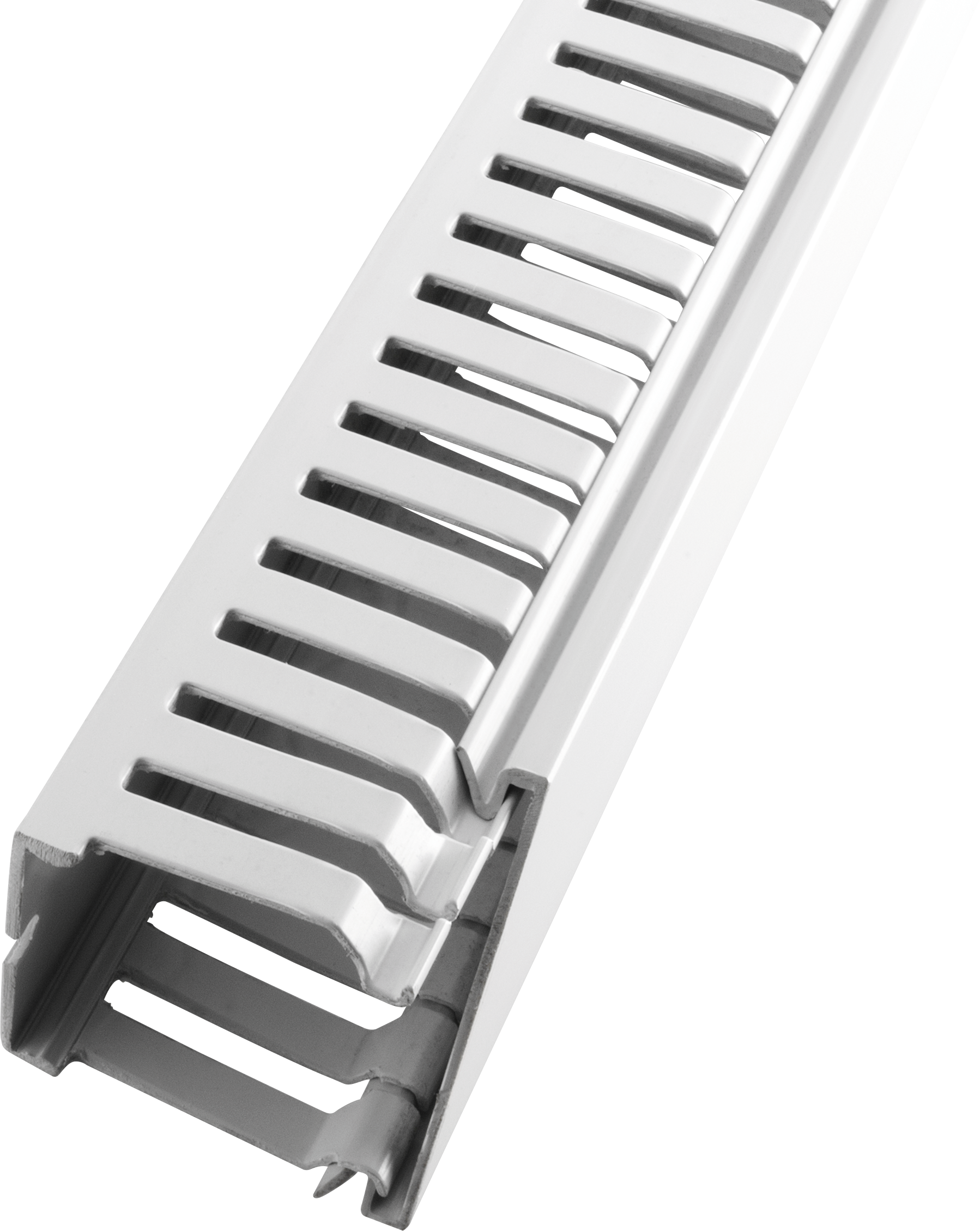

TERMINAL Control Panel Trunk. DIN halogenfree 50/75 mm grey RAL 7035/ PU: 28m

Datenblatt_DIN_HF__de__2025_07.pdf

Verdrahtungskanal Terminal DIN halogenfrei

Width: 50 mm, Height: 75 mm, Adhesive tape width: 0 mm

Product nr.: 7672-1

See all versions

Width

Height

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Licatec Terminal DIN halogenfrei Verdrahtungskanäle entsprechen EN 50085. Diese Serie wird aus halogenfreiem Kunststoff gem. VDE 0472, Teil 815 gefertigt. Das Material setzt im Brandfall keine toxischen Gase frei. Temperaturbeständigkeit -25° C bis + 90° C.

Besondere Merkmale:

Drahtrückhaltenasen ab Bauhöhe 75 mm
Farbe: grau, RAL 7035

Special features

C-UR-US

CE Exempt

EN-45545-HL2

ePLAN

RoHS compliant

VDE

Technical specifications

General

ETIM-class:

Slotted cable trunking system

Material:

Polycarbonate (PC)/ABS

Type of side wall:

Slotted

Type of fastening:

Bottom perforation

Colour:

Grey

Length:

2000 mm

Adhesive tape width:

0 mm

Slit width:

5 mm

Height:

75 mm

Distance of slots:

7,5 mm

Width:

50 mm

Usable cross section:

2924 mm²

Downloads

Datenblatt_DIN_HF__de__2025_07.pdf

All versions

Type	Adhesive tape width	Height	Width	Product nr.
Type TERMINAL Control Panel Trunk. DIN halogenfree 100/75 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Height 75 mm	Width 100 mm	Product nr. 7674-1
TERMINAL Control Panel Trunk. DIN halogenfree 100/75 mm grey RAL 7035/ PU: 16m Width: 100 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7674-1 Width: 100 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 75/75 mm grey RAL 7035/ PU: 24m	Adhesive tape width 0 mm	Height 75 mm	Width 75 mm	Product nr. 7673-1
TERMINAL Control Panel Trunk. DIN halogenfree 75/75 mm grey RAL 7035/ PU: 24m Width: 75 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7673-1 Width: 75 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 100/100 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Height 100 mm	Width 100 mm	Product nr. 7679-1
TERMINAL Control Panel Trunk. DIN halogenfree 100/100 mm grey RAL 7035/ PU: 16m Width: 100 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7679-1 Width: 100 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 125/75 mm grey RAL 7035/ PU: 16m	Adhesive tape width 0 mm	Height 75 mm	Width 125 mm	Product nr. 7675-1
TERMINAL Control Panel Trunk. DIN halogenfree 125/75 mm grey RAL 7035/ PU: 16m Width: 125 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7675-1 Width: 125 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 25/75 mm grey RAL 7035/ PU: 36m	Adhesive tape width 0 mm	Height 75 mm	Width 25 mm	Product nr. 7670-1
TERMINAL Control Panel Trunk. DIN halogenfree 25/75 mm grey RAL 7035/ PU: 36m Width: 25 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7670-1 Width: 25 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 25/25 mm grey RAL 7035/ PU: 48m	Adhesive tape width 0 mm	Height 25 mm	Width 25 mm	Product nr. 7656-1
TERMINAL Control Panel Trunk. DIN halogenfree 25/25 mm grey RAL 7035/ PU: 48m Width: 25 mm, Height: 25 mm, Adhesive tape width: 0 mm Product-Nr.: 7656-1 Width: 25 mm Height: 25 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 100/50 mm grey RAL 7035/ PU: 20m	Adhesive tape width 0 mm	Height 50 mm	Width 100 mm	Product nr. 7664-1
TERMINAL Control Panel Trunk. DIN halogenfree 100/50 mm grey RAL 7035/ PU: 20m Width: 100 mm, Height: 50 mm, Adhesive tape width: 0 mm Product-Nr.: 7664-1 Width: 100 mm Height: 50 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 50/100 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Height 100 mm	Width 50 mm	Product nr. 7677-1
TERMINAL Control Panel Trunk. DIN halogenfree 50/100 mm grey RAL 7035/ PU: 32m Width: 50 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7677-1 Width: 50 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 37,5/37,5 mm grey RAL 7035/ PU: 40m	Adhesive tape width 0 mm	Height 37,5 mm	Width 37,5 mm	Product nr. 7651-1
TERMINAL Control Panel Trunk. DIN halogenfree 37,5/37,5 mm grey RAL 7035/ PU: 40m Width: 37,5 mm, Height: 37,5 mm, Adhesive tape width: 0 mm Product-Nr.: 7651-1 Width: 37,5 mm Height: 37,5 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 50/50 mm grey RAL 7035/ PU: 42m	Adhesive tape width 0 mm	Height 50 mm	Width 50 mm	Product nr. 7662-1
TERMINAL Control Panel Trunk. DIN halogenfree 50/50 mm grey RAL 7035/ PU: 42m Width: 50 mm, Height: 50 mm, Adhesive tape width: 0 mm Product-Nr.: 7662-1 Width: 50 mm Height: 50 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 25/50 mm grey RAL 7035/ PU: 44m	Adhesive tape width 0 mm	Height 50 mm	Width 25 mm	Product nr. 7660-1
TERMINAL Control Panel Trunk. DIN halogenfree 25/50 mm grey RAL 7035/ PU: 44m Width: 25 mm, Height: 50 mm, Adhesive tape width: 0 mm Product-Nr.: 7660-1 Width: 25 mm Height: 50 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 37,5/75 mm grey RAL 7035/ PU: 24m	Adhesive tape width 0 mm	Height 75 mm	Width 37,5 mm	Product nr. 7671-1
TERMINAL Control Panel Trunk. DIN halogenfree 37,5/75 mm grey RAL 7035/ PU: 24m Width: 37,5 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7671-1 Width: 37,5 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 50/37,5 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Height 37,5 mm	Width 50 mm	Product nr. 7652-1
TERMINAL Control Panel Trunk. DIN halogenfree 50/37,5 mm grey RAL 7035/ PU: 32m Width: 50 mm, Height: 37,5 mm, Adhesive tape width: 0 mm Product-Nr.: 7652-1 Width: 50 mm Height: 37,5 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 50/75 mm grey RAL 7035/ PU: 28m	Adhesive tape width 0 mm	Height 75 mm	Width 50 mm	Product nr. 7672-1
TERMINAL Control Panel Trunk. DIN halogenfree 50/75 mm grey RAL 7035/ PU: 28m Width: 50 mm, Height: 75 mm, Adhesive tape width: 0 mm Product-Nr.: 7672-1 Width: 50 mm Height: 75 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 25/37,5 mm grey RAL 7035/ PU: 54m	Adhesive tape width 0 mm	Height 37,5 mm	Width 25 mm	Product nr. 7650-1
TERMINAL Control Panel Trunk. DIN halogenfree 25/37,5 mm grey RAL 7035/ PU: 54m Width: 25 mm, Height: 37,5 mm, Adhesive tape width: 0 mm Product-Nr.: 7650-1 Width: 25 mm Height: 37,5 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 75/50 mm grey RAL 7035/ PU: 28m	Adhesive tape width 0 mm	Height 50 mm	Width 75 mm	Product nr. 7663-1
TERMINAL Control Panel Trunk. DIN halogenfree 75/50 mm grey RAL 7035/ PU: 28m Width: 75 mm, Height: 50 mm, Adhesive tape width: 0 mm Product-Nr.: 7663-1 Width: 75 mm Height: 50 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 75/100 mm grey RAL 7035/ PU: 20m	Adhesive tape width 0 mm	Height 100 mm	Width 75 mm	Product nr. 7678-1
TERMINAL Control Panel Trunk. DIN halogenfree 75/100 mm grey RAL 7035/ PU: 20m Width: 75 mm, Height: 100 mm, Adhesive tape width: 0 mm Product-Nr.: 7678-1 Width: 75 mm Height: 100 mm Adhesive tape width: 0 mm Price only for registered users Log in To product

Type TERMINAL Control Panel Trunk. DIN halogenfree 37,5/50 mm grey RAL 7035/ PU: 32m	Adhesive tape width 0 mm	Height 50 mm	Width 37,5 mm	Product nr. 7661-1
TERMINAL Control Panel Trunk. DIN halogenfree 37,5/50 mm grey RAL 7035/ PU: 32m Width: 37,5 mm, Height: 50 mm, Adhesive tape width: 0 mm Product-Nr.: 7661-1 Width: 37,5 mm Height: 50 mm Adhesive tape width: 0 mm Price only for registered users Log in To product
