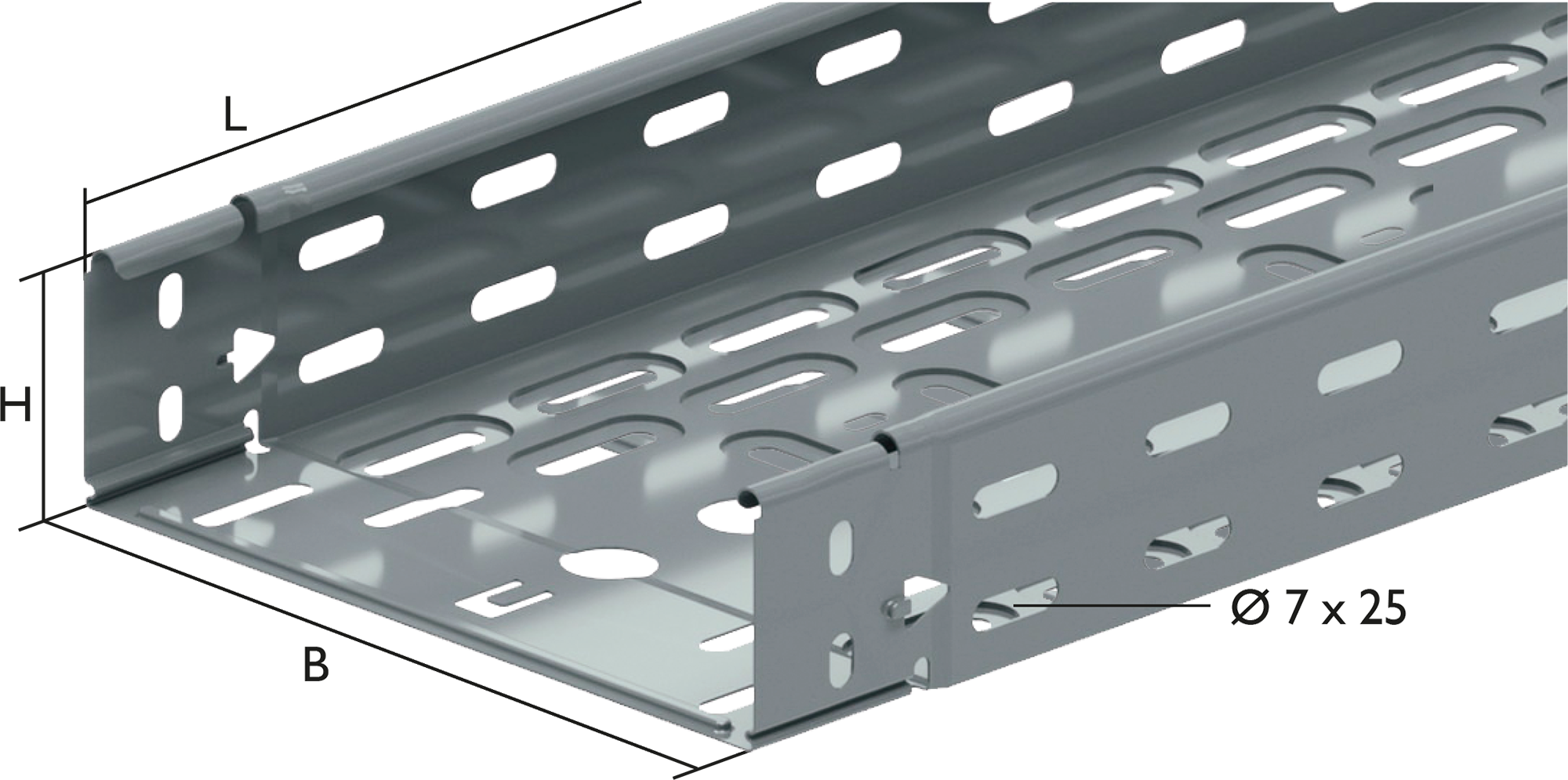

Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.

Datenblatt_KBLS__de__2022_04.pdf

Kabelbahnen KBLS 60, integriertem Stecksystem SV

Width: 100 mm, Material thickness: 0,75 mm, Length: 3000 mm

Product nr.: 8001010

See all versions

Width

Material thickness

Price for registered users only

As a registered user, you have access to all prices for our items and can order directly.

Product description

Einfach schneller fertig!
Unsere innovative neue Kabelbahn wird durch einfaches Einstecken und Verrasten ohne eine zusätzliche Verbindung mit Schrauben oder Klipsen montiert.

Neu ist auch die Version aus Zink-Magnesium (ZM), die durch die neuartige chemische Zusammensetzung eine Korrosionsbeständigkeit bietet, die gleichzusetzen ist mit einer Tauch-Feuerverzinkung, preislich aber deutlich attraktiver ist.

Ab sofort sind alle Kabelbahnen KBLS 60 bis Breite 400 mm an unserem Lager verfügbar.

Übrigens: die neue KBLS 60 ist kompatibel mit unserer bisherigen Ausführung KBL 60, das gesamte Zubehör kann daher weiter genutzt werden.

Alle Vorteile im Überblick

Schnell - Einfach einrasten und fertig ist die Verbindung
Stabil - Genauso stabil wie eine Schraubverbindung
Zuverlässig - Maximale Belastung auch mit Klickverbindung.
Günstig - Schnellere Verarbeitung spart Zeit und Kosten
Breites Sortiment inkl. Zubehör ab Lager lieferbar
Neue ZM-Version - Günstige Lösung auch für erhöhten Korrosionsschutz
Auch für Funktionserhalt

Gestanzte Lochung für

Bessere Stabilität
Bessere Kühlung

Längs- und Querlochung für

Einfache Befestigung am Ausleger
Praktisches Bündeln von Kabeln

Special features

Sendzimirgalvanized

Zinc-Magnesium

Technical specifications

General

ETIM-class:

Cable tray

Model:

Integrated connector

Type of connection:

Click in mounting

Material:

Steel

Surface protection:

Continuously galvanised

Colour:

Zinc

Length:

3000 mm

Material thickness:

0,75 mm

Width:

100 mm

Height:

60 mm

Usable cross section:

6000 mm²

Downloads

Datenblatt_KBLS__de__2022_04.pdf

All versions

Type	Length	Material thickness	Width	Product nr.
Type Cable tray with bores KBL 200x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 0,75 mm	Width 200 mm	Product nr. 8001030
Cable tray with bores KBL 200x60x0.75 mm sheet-steel,sendiz.galva. Width: 200 mm, Material thickness: 0,75 mm, Length: 3000 mm Product-Nr.: 8001030 Width: 200 mm Material thickness: 0,75 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 300 mm	Product nr. 8001770
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 300 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001770 Width: 300 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 300x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 0,75 mm	Width 300 mm	Product nr. 8001050
Cable tray with bores KBL 300x60x0.75 mm sheet-steel,sendiz.galva. Width: 300 mm, Material thickness: 0,75 mm, Length: 3000 mm Product-Nr.: 8001050 Width: 300 mm Material thickness: 0,75 mm Length: 3000 mm Price only for registered users Log in To product

Type KBLS 60, Kabelbahn m. klickbaren Verbindern 3000 x 600 x 60 , 1 mm Stahlblech, Sendzimirverzinkt	Length 3000 mm	Material thickness 1 mm	Width 600 mm	Product nr. 8001190
KBLS 60, Kabelbahn m. klickbaren Verbindern 3000 x 600 x 60 , 1 mm Stahlblech, Sendzimirverzinkt Width: 600 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001190 Width: 600 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 400 mm	Product nr. 8001120
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 400 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001120 Width: 400 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 75 mm	Product nr. 8001680
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 75 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001680 Width: 75 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 200x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 200 mm	Product nr. 8001730
Cable tray with bores KBL 200x60x0.75 mm sheet-steel,sendiz.galva. Width: 200 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001730 Width: 200 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 150x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 0,75 mm	Width 150 mm	Product nr. 8001420
Cable tray with bores KBL 150x60x0.75 mm sheet-steel,sendiz.galva. Width: 150 mm, Material thickness: 0,75 mm, Length: 3000 mm Product-Nr.: 8001420 Width: 150 mm Material thickness: 0,75 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 0,75 mm	Width 100 mm	Product nr. 8001010
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 100 mm, Material thickness: 0,75 mm, Length: 3000 mm Product-Nr.: 8001010 Width: 100 mm Material thickness: 0,75 mm Length: 3000 mm Price only for registered users Log in To product

Type KBLS 60, Kabelbahn m. klickbaren Verbindern 3000 x 500 x 60 , 1 mm Stahlblech, Sendzimirverzinkt	Length 3000 mm	Material thickness 1 mm	Width 500 mm	Product nr. 8001180
KBLS 60, Kabelbahn m. klickbaren Verbindern 3000 x 500 x 60 , 1 mm Stahlblech, Sendzimirverzinkt Width: 500 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001180 Width: 500 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 75 mm	Width 100 mm	Product nr. 8001020
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 100 mm, Material thickness: 75 mm, Length: 3000 mm Product-Nr.: 8001020 Width: 100 mm Material thickness: 75 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 150 mm	Product nr. 8001710
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 150 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001710 Width: 150 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product

Type Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva.	Length 3000 mm	Material thickness 1 mm	Width 100 mm	Product nr. 8001700
Cable tray with bores KBL 100x60x0.75 mm sheet-steel,sendiz.galva. Width: 100 mm, Material thickness: 1 mm, Length: 3000 mm Product-Nr.: 8001700 Width: 100 mm Material thickness: 1 mm Length: 3000 mm Price only for registered users Log in To product
